5-6605704-9

Active

TRP Connector B.V.

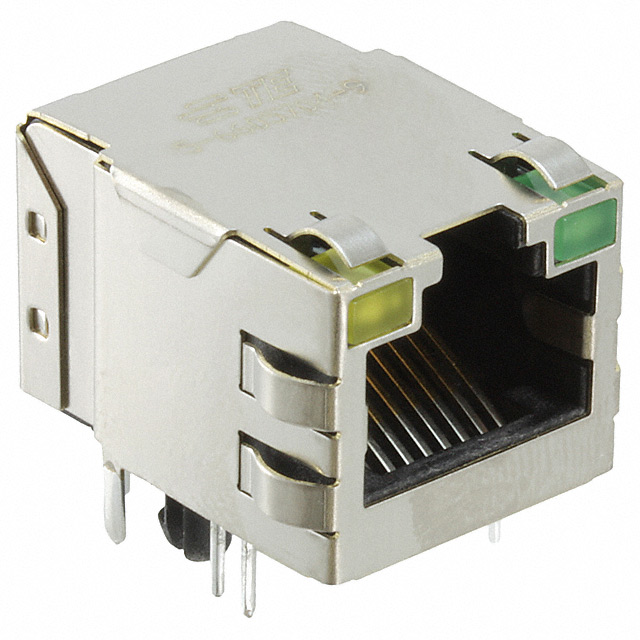

CONN JACK 1PORT 100 BASE-T

Search across all available documentation for this part.

Active

TRP Connector B.V.

CONN JACK 1PORT 100 BASE-T

Technical Specifications

Parameters and characteristics for this part

Specification	5-6605704-9

Applications	10/100 Base-T, AutoMDIX
Connector Type	RJ45
Contact Finish	Gold
Contact Finish Thickness	50 µin
Contact Finish Thickness	1.27 µm
Contact Material	Phosphor Bronze
Features	Board Lock, Decoupling Capacitance
Height Above Board [z]	14.1 mm
Height Above Board [z]	0.555 in
Housing Material	Polyethylene Terephthalate (PET), Polyester
LED Color	Yellow - Green
Mounting Type	Through Hole
Number of Cores per Jack	6
Number of Ports	1
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Orientation	90 °
Shield Material	Brass
Shielding	Shielded, EMI Finger
Tab Direction	Up
Termination	Solder

CONN JACK 1PORT 100 BASE-T

Part	Number of Cores per Jack	Contact Material	Shielding	Mounting Type	Housing Material	Height Above Board [z]	Height Above Board [z]	LED Color	Features	Applications	Termination	Number of Rows	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish Thickness	Contact Finish Thickness	Orientation	Tab Direction	Number of Ports	Shield Material	Contact Finish	Connector Type
TRP Connector B.V. 5-6605704-9	6	Phosphor Bronze	Shielded, EMI Finger	Through Hole	Polyester, Polyethylene Terephthalate (PET)	14.1 mm	0.555 in	Yellow - Green	Board Lock, Decoupling Capacitance	10/100 Base-T, AutoMDIX	Solder	1	85 °C	-40 °C	50 µin	1.27 µm	90 °	Up	1	Brass	Gold	RJ45

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

1 Port RJ45Through Hole 10/100 Base-T, AutoMDIX
