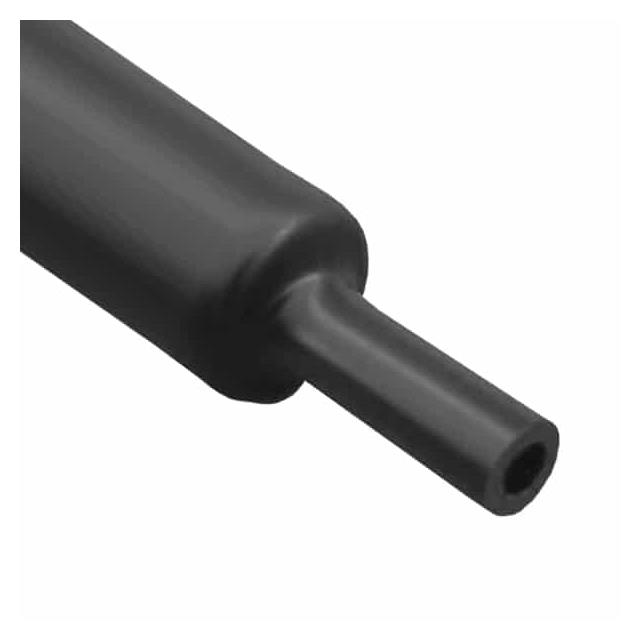

QRA3-55/16-QC48IN-15

Active

Qualtek

HEATSHRINK 55/16MM-48"

Search across all available documentation for this part.

Active

Qualtek

HEATSHRINK 55/16MM-48"

Technical Specifications

Parameters and characteristics for this part

Specification	QRA3-55/16-QC48IN-15

Color	Black, Red
Inner Diameter - Recovered [diameter]	16 mm
Inner Diameter - Recovered [diameter]	0.63 "
Inner Diameter - Supplied [diameter]	2.165 in
Inner Diameter - Supplied [diameter]	54.99 mm
Length [x]	1.22 m
Length [x]	4 ft
Material	Polyolefin (PO)
Operating Temperature [Max]	110 °C
Operating Temperature [Min]	-55 °C
Recovered Wall Thickness	0.161 "
Recovered Wall Thickness	4.1 mm
Shelf Life	60 Months
Shrinkage Ratio [Max]	3
Shrinkage Ratio [Min]	1
Storage/Refrigeration Temperature [Max]	40 °C
Storage/Refrigeration Temperature [Min]	-10 °C, -50 °F
Type	Tubing, Insulation

HEATSHRINK 55/16MM-48"

Part	Type	Shelf Life	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]	Color	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered [diameter]	Material	Length [x]	Length [x]	Operating Temperature [Min]	Operating Temperature [Max]	Shrinkage Ratio [Min]	Shrinkage Ratio [Max]	Storage/Refrigeration Temperature [Min]	Storage/Refrigeration Temperature [Max]	Recovered Wall Thickness	Recovered Wall Thickness
Qualtek QRA3-55/16-QC48IN-15	Tubing, Insulation	60 Months	2.165 in	54.99 mm	Black, Red	16 mm	0.63 "	Polyolefin (PO)	1.22 m	4 ft	-55 °C	110 °C	1	3	-50 °F, -10 °C	40 °C	0.161 "	4.1 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Heat Shrink Tubing, Insulation 2.165" (54.99mm) 3 to 1 Black, Red 4.00' (1.22m)
