PE45592

Active

Pasternack

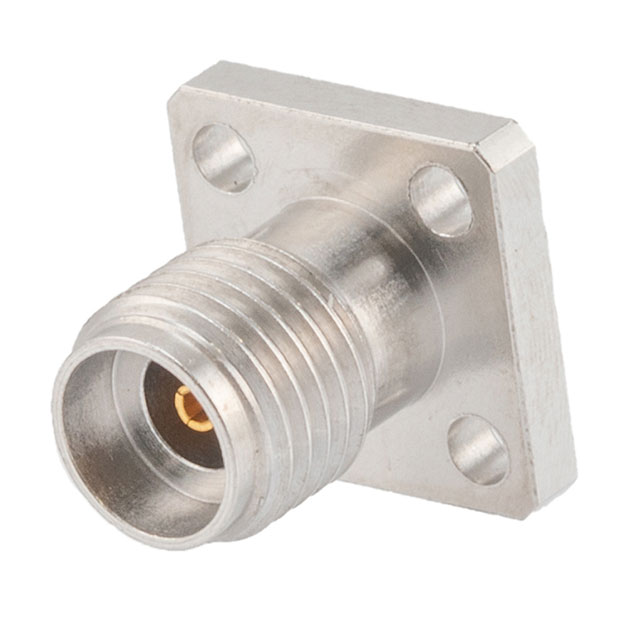

2.92(F) FLD RPL 4HOLE 0.015" PIN

Search across all available documentation for this part.

Active

Pasternack

2.92(F) FLD RPL 4HOLE 0.015" PIN

Technical Specifications

Parameters and characteristics for this part

Specification	PE45592

Body Material	Stainless Steel
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	2.92 mm
Connector Type	Receptacle, Female Socket
Contact Termination	Compression
Dielectric Material	Polyetherimide (PEI)
Features	Field Replaceable, For Hermetically Sealed Pin
Frequency - Max [Max]	40 GHz
Housing Color	Silver
Impedance	50 Ohms
Mating Cycles	500
Mounting Feature	Flange
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-40 °C
Shield Termination	Screw

Part	Center Contact Plating	Frequency - Max [Max]	Shield Termination	Body Material	Connector Style	Housing Color	Number of Ports	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Mounting Feature	Dielectric Material	Impedance	Center Contact Material	Mating Cycles	Contact Termination	Features
Pasternack PE45592	Gold	40 GHz	Screw	Stainless Steel	2.92 mm	Silver	1	165 °C	-40 °C	Female Socket Receptacle	Flange	Polyetherimide (PEI)	50 Ohms	Beryllium Copper	500	Compression	Field Replaceable For Hermetically Sealed Pin
Pasternack PE45597	Gold	40 GHz	Screw	Stainless Steel	2.92 mm	Silver	1	165 °C	-40 °C	Female Socket Receptacle	Flange	Polyetherimide (PEI)	50 Ohms	Beryllium Copper	500	Compression	Field Replaceable For Hermetically Sealed Pin
Pasternack PE45593	Gold	40 GHz	Screw	Stainless Steel	2.92 mm	Silver	1	165 °C	-40 °C	Female Socket Receptacle	Flange	Polyetherimide (PEI)	50 Ohms	Beryllium Copper	500	Compression	Field Replaceable For Hermetically Sealed Pin

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2.92mm Connector Receptacle, Female Socket 50 Ohms Panel Mount Compression
