Q-0104B0001072i

Active

Amphenol Custom Cable

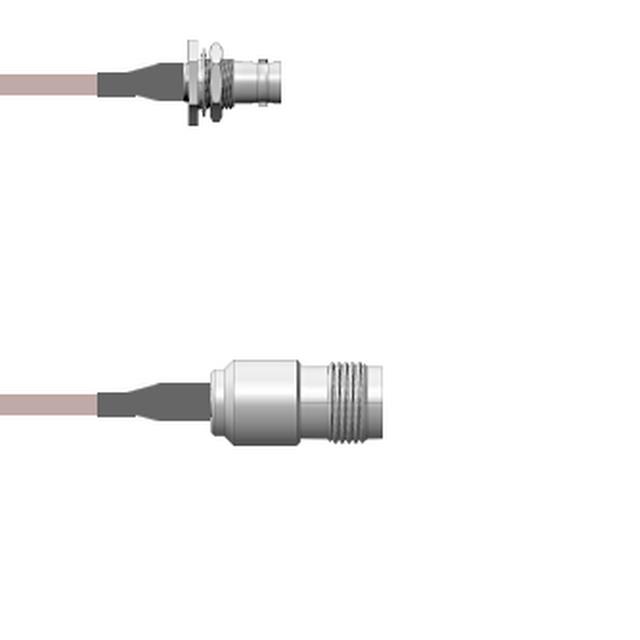

COAX CABLE BNC TO TNC 6'

Search across all available documentation for this part.

Active

Amphenol Custom Cable

COAX CABLE BNC TO TNC 6'

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	Q-0104B0001072i	Q-0104B0 Series

1st Connector	BNC Jack	BNC Jack
1st Connector Mounting Feature	Bulkhead - Front Side Nut	Bulkhead - Front Side Nut
1st Connector Mounting Type	Panel Mount	Panel Mount
1st Contact Gender	Female	Female
2nd Connector	TNC Jack	TNC Jack
2nd Connector Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
2nd Contact Gender	Female	Female
Cable Type	RG-178	RG-178
Color	Copper	Copper
Features	Shielded	Shielded
Frequency - Max [Max]	4 GHz	4 GHz
Length	6 ft	6 ft
Length	72 in	6 - 72 in
Length	1.8 m	1.8 - 152.4 m
Overall Impedance	50 Ohms	50 Ohms
Style	BNC to TNC	BNC to TNC

COAX CABLE BNC TO TNC 6'

Part	1st Contact Gender	2nd Connector	Color	Style	2nd Contact Gender	1st Connector Mounting Feature	Features	1st Connector Mounting Type	1st Connector	Frequency - Max [Max]	Length	Length	Length	Cable Type	Overall Impedance	2nd Connector Mounting Type
Amphenol Custom Cable Q-0104B0001072i	Female	TNC Jack	Copper	BNC to TNC	Female	Bulkhead - Front Side Nut	Shielded	Panel Mount	BNC Jack	4 GHz	6 ft	72 in	1.8 m	RG-178	50 Ohms	Free Hanging (In-Line)
Amphenol Custom Cable Q-0104B0001006i	Female	TNC Jack	Copper	BNC to TNC	Female	Bulkhead - Front Side Nut	Shielded	Panel Mount	BNC Jack	4 GHz		6 in	152.4 mm	RG-178	50 Ohms	Free Hanging (In-Line)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Assembly Coaxial BNC to TNC RG-178 72.0" (1.8m) 6.0'

Technical documentation and resources

No documents available
