A31CSP24VDC2

Active

CIT Relay and Switch

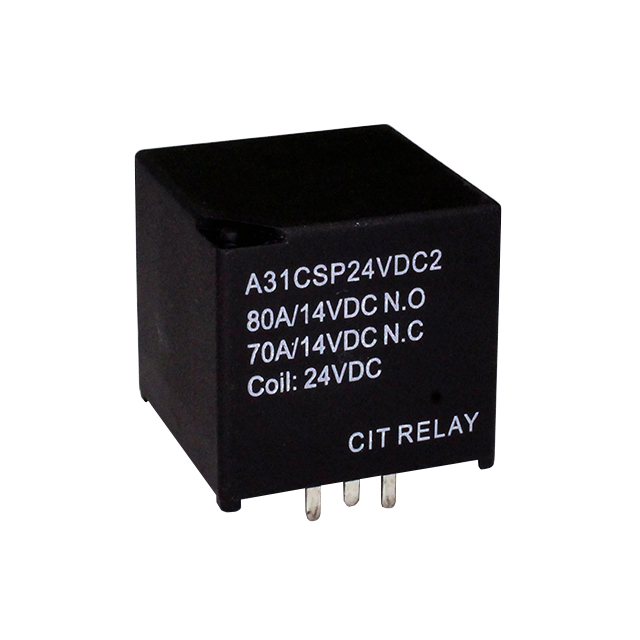

RELAY AUTOMOTIVE SPDT 80A 24V

Search across all available documentation for this part.

Active

CIT Relay and Switch

RELAY AUTOMOTIVE SPDT 80A 24V

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	A31CSP24VDC2	A31CSP Series

Coil Current	75 mA	75 - 150 mA
Coil Power	1.8 W	1.8 W
Coil Resistance	320 Ohms	80 - 320 Ohms
Coil Type	Non Latching	Non Latching
Coil Voltage	24 VDC	12 - 24 VDC
Contact Form	SPDT (1 Form C)	SPDT (1 Form C)
Contact Material	Silver Tin Oxide Indium Oxide (AgSnOInO)	Silver Tin Oxide Indium Oxide (AgSnOInO)
Contact Rating (Current)	80 A	80 A
Features	Sealed - Fully	Sealed - Fully, Diode
Mounting Type	Through Hole	Through Hole
Must Operate Voltage	16.8 VDC	8.4 - 16.8 VDC
Must Release Voltage	2.4 VDC	1.2 - 2.4 VDC
Operate Time	7 ms	7 ms
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-40 °C	-40 °C
Release Time	5 ms	5 ms
Switching Voltage	75 VDC	75 VDC
Termination Style	PC Pin	PC Pin

RELAY AUTOMOTIVE SPDT 80A 24V

Part	Coil Power	Coil Resistance	Release Time	Must Operate Voltage	Features	Switching Voltage	Must Release Voltage	Contact Rating (Current)	Contact Form	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Coil Current	Contact Material	Coil Voltage	Coil Type	Termination Style	Operate Time
CIT Relay and Switch A31CSP24VDC2	1.8 W	320 Ohms	5 ms	16.8 VDC	Sealed - Fully	75 VDC	2.4 VDC	80 A	SPDT (1 Form C)	Through Hole	125 °C	-40 °C	75 mA	Silver Tin Oxide Indium Oxide (AgSnOInO)	24 VDC	Non Latching	PC Pin	7 ms
CIT Relay and Switch A31CSP24VDC2D	1.8 W	320 Ohms	5 ms	16.8 VDC	Diode, Sealed - Fully	75 VDC	2.4 VDC	80 A	SPDT (1 Form C)	Through Hole	125 °C	-40 °C	75 mA	Silver Tin Oxide Indium Oxide (AgSnOInO)	24 VDC	Non Latching	PC Pin	7 ms
CIT Relay and Switch A31CSP12VDC2D	1.8 W	80 Ohms	5 ms	8.4 VDC	Diode, Sealed - Fully	75 VDC	1.2 VDC	80 A	SPDT (1 Form C)	Through Hole	125 °C	-40 °C	150 mA	Silver Tin Oxide Indium Oxide (AgSnOInO)	12 VDC	Non Latching	PC Pin	7 ms
