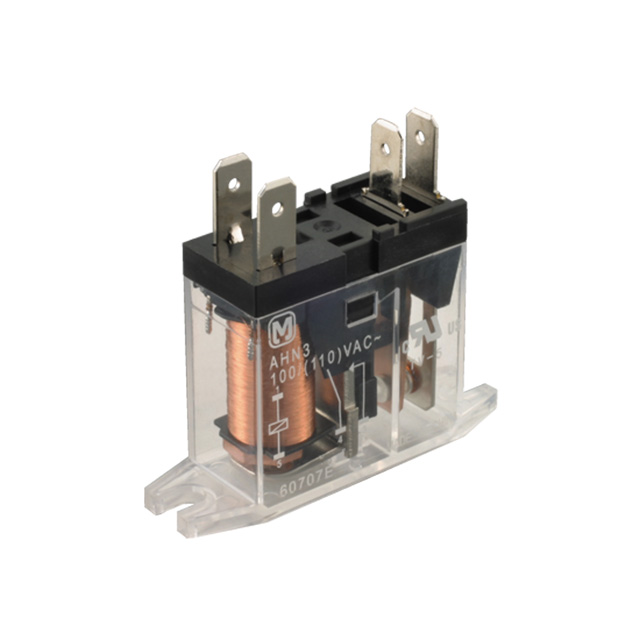

AHN350Y2

Obsolete

Panasonic Electric Works

RELAY GEN PURPOSE SPST 16A 240V

Search across all available documentation for this part.

Obsolete

Panasonic Electric Works

RELAY GEN PURPOSE SPST 16A 240V

Technical Specifications

Parameters and characteristics for this part

Part	Must Operate Voltage	Coil Resistance	Coil Current	Contact Rating (Current)	Mounting Type	Termination Style	Load - Max Switching	Relay Type	Coil Voltage	Operate Time	Release Time	Approval Agency	Contact Material	Must Release Voltage	Coil Type	Contact Form	Operating Temperature [Min]	Operating Temperature [Max]	Switching Voltage [Max]
Panasonic Electric Works AHN350X1	96 VAC	12 kOhms	9.7 mA	16 A	Chassis Mount	Quick Connect - 0.187" (4.7mm)	480 W 4000 VA	General Purpose	120 VAC	15 ms	5 ms	cURus VDE	Silver Tin Oxide (AgSnO)	36 VAC	Non Latching	SPST-NO (1 Form A)	-40 °C	70 °C	30 VDC 250 VAC
Panasonic Electric Works AHN35024	19.2 VAC	640 Ohms	37.5 mA	16 A	Chassis Mount	Quick Connect - 0.187" (4.7mm)	480 W 4000 VA	General Purpose	24 VAC	15 ms	5 ms	cURus VDE	Silver Tin Oxide (AgSnO)	7.2 VAC	Non Latching	SPST-NO (1 Form A)	-40 °C	70 °C	30 VDC 250 VAC
Panasonic Electric Works AHN350Y2	192 VAC	59 kOhms	4.1 mA	16 A	Chassis Mount	Quick Connect - 0.187" (4.7mm)	480 W 4000 VA	General Purpose	240 VAC	15 ms	5 ms	cURus VDE	Silver Tin Oxide (AgSnO)	72 VAC/DC	Non Latching	SPST-NO (1 Form A)	-40 °C	70 °C	30 VDC 250 VAC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

General Purpose Relay SPST-NO (1 Form A) 240VAC Coil Chassis Mount
