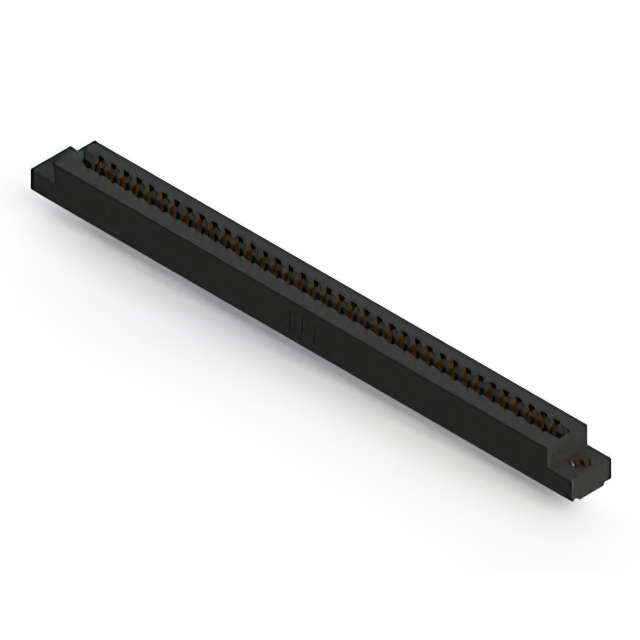

355-074-521-207
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 74POS 0.156
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
355-074-521-207
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 74POS 0.156
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 355-074-521-207 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Semi Bellows |
| Flange Feature | Top Opening, Flush Mount, M3, Threaded Insert |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole, Panel Mount |
| Number of Positions | 74 |
| Number of Positions/Bay/Row [custom] | 37 |
| Number of Positions/Bay/Row [custom] | 37 |
| Number of Positions/Bay/Row [custom] | 37 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 2 |
355-074 Series
| Part | Flange Feature | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Termination | Gender | Number of Positions/Bay/Row [custom] | Number of Positions/Bay/Row [custom] | Number of Positions/Bay/Row [custom] | Read Out | Operating Temperature [Min] | Operating Temperature [Max] | Material - Insulation | Contact Finish Thickness | Contact Finish Thickness | Pitch [x] | Pitch [x] | Termination Rows | Color | Number of Positions | Number of Rows | Contact Material | Contact Type | Contact Finish | Card Type | Flange Feature [diameter] | Flange Feature [diameter] | Features | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Flush Mount M3 Threaded Insert Top Opening | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder Eyelet(s) | Female | 37 | 37 | 37 | Dual | -40 °C | 105 ░C | Polyester Thermoplastic | 10 Áin | 0.25 Ám | 0.156 in | 3.96 mm | 2 | Black | 74 | 2 | Copper Alloy | Semi Bellows | Gold | Non Specified - Dual Edge | ||||
EDAC Inc. | Floating Bobbin Flush Mount | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder Eyelet(s) | Female | 37 | 37 | 37 | Dual | -40 °C | 105 ░C | Polyester Thermoplastic | 10 Áin | 0.25 Ám | 0.156 in | 3.96 mm | 2 | Black | 74 | 2 | Copper Alloy | Semi Bellows | Gold | Non Specified - Dual Edge | 0.116 in | 2.95 mm | ||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | Female | 37 | 37 | 37 | Dual | -40 °C | 105 ░C | Polyester Thermoplastic | 10 Áin | 0.25 Ám | 0.156 in | 3.96 mm | 2 | Black | 74 | 2 | Copper Alloy | Semi Bellows | Gold | Non Specified - Dual Edge | Card Extender | Board Edge Straddle Mount | |||
EDAC Inc. | Flush Mount Top Opening Unthreaded | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder Eyelet(s) | Female | 37 | 37 | 37 | Dual | -40 °C | 105 ░C | Polyester Thermoplastic | 10 Áin | 0.25 Ám | 0.156 in | 3.96 mm | 2 | Black | 74 | 2 | Copper Alloy | Semi Bellows | Gold | Non Specified - Dual Edge | 0.156 in | 3.96 mm | ||
EDAC Inc. | Flush Mount M3 Threaded Insert Top Opening | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | Female | 37 | 37 | 37 | Dual | -40 °C | 105 ░C | Polyester Thermoplastic | 10 Áin | 0.25 Ám | 0.156 in | 3.96 mm | 2 | Black | 74 | 2 | Copper Alloy | Semi Bellows | Gold | Non Specified - Dual Edge | Panel Mount Through Hole | |||
EDAC Inc. | 4-40 Flush Mount Threaded Insert Top Opening | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | Female | 37 | 37 | 37 | Dual | -40 °C | 105 ░C | Polyester Thermoplastic | 10 Áin | 0.25 Ám | 0.156 in | 3.96 mm | 2 | Black | 74 | 2 | Copper Alloy | Semi Bellows | Gold | Non Specified - Dual Edge | Card Extender | Board Edge Straddle Mount | ||
EDAC Inc. | 4-40 Flush Mount Threaded Insert Top Opening | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | Female | 37 | 37 | 37 | Dual | -40 °C | 105 ░C | Polyester Thermoplastic | 10 Áin | 0.25 Ám | 0.156 in | 3.96 mm | 2 | Black | 74 | 2 | Copper Alloy | Semi Bellows | Gold | Non Specified - Dual Edge | Board Edge Straddle Mount | |||
EDAC Inc. | 4-40 Flush Mount Threaded Insert Top Opening | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | Female | 37 | 37 | 37 | Dual | -40 °C | 105 ░C | Polyester Thermoplastic | 10 Áin | 0.25 Ám | 0.156 in | 3.96 mm | 2 | Black | 74 | 2 | Copper Alloy | Semi Bellows | Gold | Non Specified - Dual Edge | Board Edge Straddle Mount | |||
EDAC Inc. | Flush Mount Top Opening Unthreaded | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | Female | 37 | 37 | 37 | Dual | -40 °C | 105 ░C | Polyester Thermoplastic | 10 Áin | 0.25 Ám | 0.156 in | 3.96 mm | 2 | Black | 74 | 2 | Copper Alloy | Semi Bellows | Gold | Non Specified - Dual Edge | 0.156 in | 3.96 mm | Card Extender | Board Edge Straddle Mount |
EDAC Inc. | Flush Mount Top Opening Unthreaded | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | Female | 37 | 37 | 37 | Dual | -40 °C | 105 ░C | Polyester Thermoplastic | 10 Áin | 0.25 Ám | 0.156 in | 3.96 mm | 2 | Black | 74 | 2 | Copper Alloy | Semi Bellows | Gold | Non Specified - Dual Edge | 0.156 in | 3.96 mm | Card Extender | Board Edge Straddle Mount |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
355-074 Series
74 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Black
