DLCBS6-8-01

Active

Essentra Access Solutions

BRD SPT SNAP LOCK NYLON 1/2"

Search across all available documentation for this part.

Active

Essentra Access Solutions

BRD SPT SNAP LOCK NYLON 1/2"

Technical Specifications

Parameters and characteristics for this part

Specification	DLCBS6-8-01

Between Board Height	0.5 in
Between Board Height	12.7 mm
Between Board Height	0.5 in
Features	Winged
Holding Type	Snap Lock
Length - Overall [x]	1.036 in
Length - Overall [x]	26.31 mm
Material	Nylon
Mounting Hole Diameter [diameter]	3.5 mm
Mounting Hole Diameter [diameter]	0.138 in
Mounting Panel Thickness [Max]	1.98 mm
Mounting Panel Thickness [Max]	0.078 "
Mounting Panel Thickness [Min]	0.79 mm
Mounting Panel Thickness [Min]	0.031 in
Mounting Type	Snap Lock
Support Hole Diameter [diameter]	0.1875 "
Support Hole Diameter [diameter]	4.75 mm
Support Hole Diameter [diameter]	0.187 "
Support Panel Thickness [Max]	1.98 mm
Support Panel Thickness [Max]	0.078 "
Support Panel Thickness [Min]	0.79 mm
Support Panel Thickness [Min]	0.031 in

Part	Features	Holding Type	Length - Overall [x]	Length - Overall	Mounting Panel Thickness [Min]	Mounting Panel Thickness [Max]	Mounting Panel Thickness [Min]	Mounting Panel Thickness [Max]	Support Hole Diameter [diameter]	Support Hole Diameter [diameter]	Support Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Between Board Height	Between Board Height	Between Board Height	Material	Mounting Type	Support Panel Thickness [Max]	Support Panel Thickness [Min]	Support Panel Thickness [Min]	Support Panel Thickness [Max]	Length - Overall	Length - Overall [x]
Essentra Access Solutions DLCBS6-5-01	Winged	Snap Lock	0.847 in	21.51 mm	0.79 mm	1.98 mm	0.031 in	0.078 "	0.1875 "	4.75 mm	0.187 "	3.5 mm	0.138 in	0.3125 in	7.95 mm	0.313 "	Nylon	Snap Lock	1.98 mm	0.79 mm	0.031 in	0.078 "
Essentra Access Solutions DLCBS6-3-01	Winged	Snap Lock		18.41 mm	0.79 mm	1.98 mm	0.031 in	0.078 "	0.1875 "	4.75 mm	0.187 "	3.5 mm	0.138 in		4.8 mm	0.189 in	Nylon	Snap Lock	1.98 mm	0.79 mm	0.031 in	0.078 "	0.725 in
Essentra Access Solutions DLCBS6-4-01	Winged	Snap Lock		20.01 mm	0.79 mm	1.98 mm	0.031 in	0.078 "	0.1875 "	4.75 mm	0.187 "	3.5 mm	0.138 in	0.25 in	6.35 mm	0.25 in	Nylon	Snap Lock	1.98 mm	0.79 mm	0.031 in	0.078 "	0.788 in
Essentra Access Solutions DLCBS6-8-01	Winged	Snap Lock	1.036 in		0.79 mm	1.98 mm	0.031 in	0.078 "	0.1875 "	4.75 mm	0.187 "	3.5 mm	0.138 in	0.5 in	12.7 mm	0.5 in	Nylon	Snap Lock	1.98 mm	0.79 mm	0.031 in	0.078 "		26.31 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

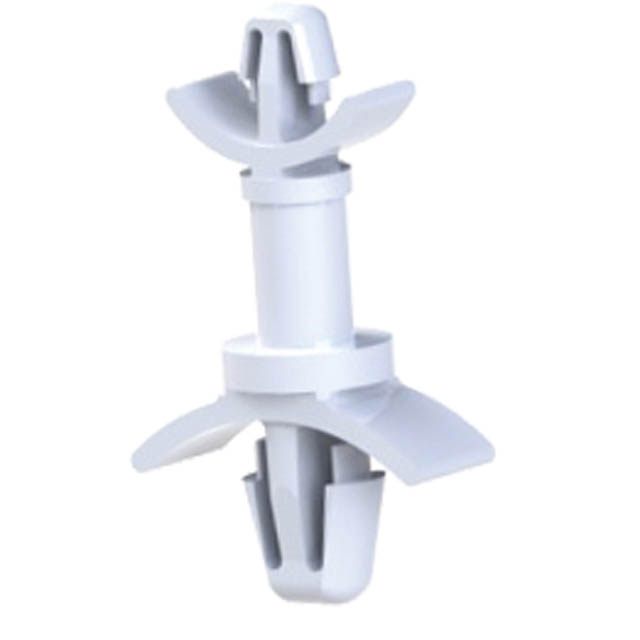

Board Support Snap Lock / Snap Lock Nylon 0.500" (12.70mm) 1/2"
