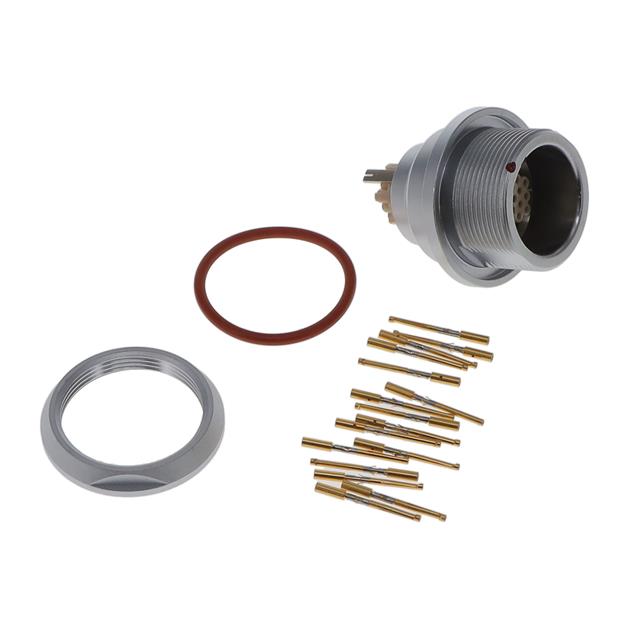

G33KAC-P16NFH2-000L

Active

ODU

PANEL RECEPTACLE, STY GK, SER K,

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet IEC 60601-1 MINI-SNAP Features

G33KAC-P16NFH2-000L

Active

ODU

PANEL RECEPTACLE, STY GK, SER K,

Deep-Dive with AI

DocumentsDatasheet IEC 60601-1 MINI-SNAP Features

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	G33KAC-P16NFH2-000L

Applications	Military, Medical, Industrial, Testing Equipment & Measurement
Color	Silver
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Material	Brass
Current Rating (Amps)	10 A
Fastening Type	Push-Pull
Features	Medical (IEC 60601 (2 MOOP/2 MOPP))
Ingress Protection	IP68 - Dust Tight, Waterproof
Insert Material	Polyetheretherketone (PEEK)
Mounting Feature	Bulkhead - Front Side Nut
Number of Positions	16
Operating Temperature [Max]	120 °C
Operating Temperature [Min]	-40 °C
Orientation	A
Primary Material	Metal
Shell Finish	Chrome over Nickel
Shell Material	Brass
Shell Size - Insert	3
Shielding	Shielded
Termination	Crimp
Voltage Rating	48 VDC

G33KAC-P Series

Part	Operating Temperature [Min]	Operating Temperature [Max]	Color	Number of Positions	Connector Type	Contact Finish - Mating	Shell Size - Insert	Applications	Fastening Type	Voltage Rating	Primary Material	Orientation	Mounting Feature	Shell Material	Features	Ingress Protection	Current Rating (Amps)	Shell Finish	Insert Material	Shielding	Contact Material	Number of Positions	Termination	Mounting Type
ODU G33KAC-P30LFG0-0000	-40 °C	120 °C	Silver	30	Receptacle Female Sockets	Gold	3	Industrial Medical Military Testing Equipment & Measurement	Push-Pull	300 VDC	Metal	A	Bulkhead - Front Side Nut	Brass	Ground	IP68 - Dust Tight Waterproof	7.5 A	Chrome over Nickel	Polyetheretherketone (PEEK)	Shielded	Brass
ODU G33KAC-P03MTQ0-0000	-40 °C	120 °C	Silver		Receptacle Female Sockets	Gold	3	Industrial Medical Military Testing Equipment & Measurement	Push-Pull	600 V	Metal	A	Bulkhead - Front Side Nut	Brass	Ground	IP68 - Dust Tight Waterproof	18 A	Chrome over Nickel	Polyetheretherketone (PEEK)	Shielded	Brass
ODU G33KAC-P16NFH2-000L	-40 °C	120 °C	Silver		Receptacle Female Sockets	Gold	3	Industrial Medical Military Testing Equipment & Measurement	Push-Pull	48 VDC	Metal	A	Bulkhead - Front Side Nut	Brass	Medical (IEC 60601 (2 MOOP/2 MOPP))	IP68 - Dust Tight Waterproof	10 A	Chrome over Nickel	Polyetheretherketone (PEEK)	Shielded	Brass	16	Crimp
ODU G33KAC-P30QF00-0000	-40 °C	120 °C	Silver	30	Receptacle Female Sockets	Gold	3	Industrial Medical Military Testing Equipment & Measurement	Push-Pull	300 VDC	Metal	A	Bulkhead - Front Side Nut	Brass	Ground	IP68 - Dust Tight Waterproof	6 A	Chrome over Nickel	Polyetheretherketone (PEEK)	Shielded	Brass		Solder	Panel Mount Through Hole

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 158.86
		10	$ 124.06
		25	$ 113.07
		50	$ 105.66
		100	$ 98.96

Description

General part information

G33KAC-P Series

16 Position Circular Connector Receptacle, Female Sockets Crimp
