LXS0104GABEX
Active4-BIT BIDIRECTIONAL LEVEL SHIFTER WITH AUTOMATIC SENSING & ULTRA TINY PACKAGE
Deep-Dive with AI
Search across all available documentation for this part.
LXS0104GABEX
Active4-BIT BIDIRECTIONAL LEVEL SHIFTER WITH AUTOMATIC SENSING & ULTRA TINY PACKAGE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | LXS0104GABEX |
|---|---|
| Channel Type | Bidirectional |
| Channels per Circuit | 4 |
| Data Rate | 24 Mbps |
| Mounting Type | Surface Mount |
| Number of Circuits | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output Type | Open Drain, Tri-State, Push-Pull |

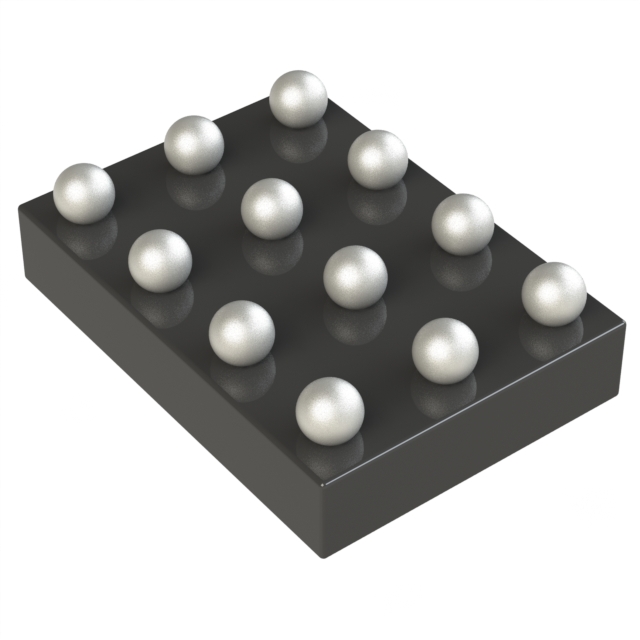

| Package / Case | 12-UFBGA, WLCSP |
| Supplier Device Package | 12-WLCSP |
| Supplier Device Package [x] | 1.37 |
| Supplier Device Package [y] | 1.87 |
| Translator Type | Voltage Level |
| Voltage - VCCA [Max] | 3.6 V |
| Voltage - VCCA [Min] | 1.65 V |
| Voltage - VCCB [Max] | 5.5 V |
| Voltage - VCCB [Min] | 2.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 3000 | $ 0.40 | |
| 6000 | $ 0.39 | |||
| 9000 | $ 0.38 | |||
| 15000 | $ 0.38 | |||
| 21000 | $ 0.37 | |||
Description
General part information
LXS0104 Series
The DIODES™ LXS0104 is a 4-bit configurable, dual-supply, bidirectional, auto-sensing translator that does not require a directional control pin. The A and B ports are designed to track two different power supply rails, VCCAand VCCBrespectively. This allows bidirectional translation between lower and higher logic signal levels.
