Q-290730013003M

Active

Amphenol Custom Cable

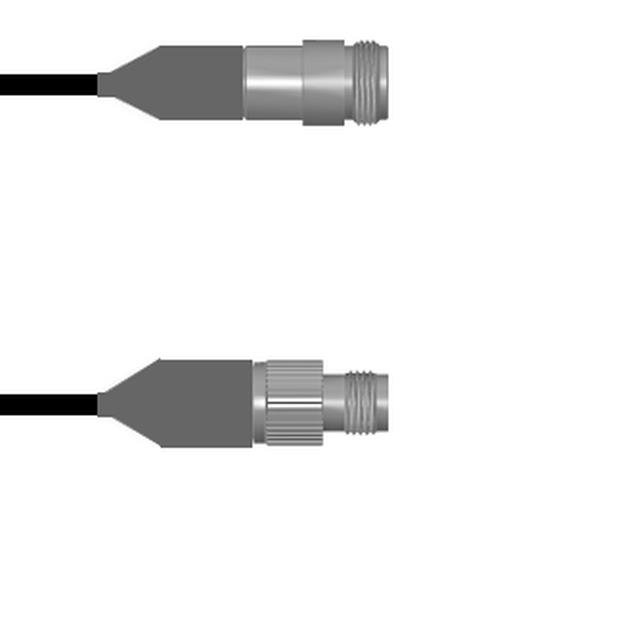

CBL ASSY NTYPE-TNC JCK-JCK 9.8'

Deep-Dive with AI

Search across all available documentation for this part.

Q-290730013003M

Active

Amphenol Custom Cable

CBL ASSY NTYPE-TNC JCK-JCK 9.8'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-290730013003M

1st Connector	N-Type Jack
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Female
2nd Connector	TNC Jack
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Female
Cable Type	LMR 400
Color	Black
Features	Shielded
Frequency - Max [Max]	6000 MHz
Length	3 m
Length	118.1 in
Length	9.8 '
Overall Impedance	50 Ohms

Q-290730 Series

Part	2nd Connector	Overall Impedance	2nd Contact Gender	2nd Connector Mounting Type	Cable Type	Color	Frequency - Max [Max]	1st Contact Gender	1st Connector Mounting Type	1st Connector	Length	Length	Features	Length	Length [x]	Length [x]	Length [x]
Amphenol Custom Cable Q-290730013006i	TNC Jack	50 Ohms	Female	Free Hanging (In-Line)	LMR 400	Black	6000 MHz	Female	Free Hanging (In-Line)	N-Type Jack	152.4 mm	6 in	Shielded
Amphenol Custom Cable Q-290730013036i	TNC Jack	50 Ohms	Female	Free Hanging (In-Line)	LMR 400	Black	6000 MHz	Female	Free Hanging (In-Line)	N-Type Jack	91.44 cm	36 in	Shielded
Amphenol Custom Cable Q-290730013024i	TNC Jack	50 Ohms	Female	Free Hanging (In-Line)	LMR 400	Black	6000 MHz	Female	Free Hanging (In-Line)	N-Type Jack	609.6 mm	24 "	Shielded
Amphenol Custom Cable Q-2907300132.5M	TNC Jack	50 Ohms	Female	Free Hanging (In-Line)	LMR 400	Black	6000 MHz	Female	Free Hanging (In-Line)	N-Type Jack	2.5 m	98.4 in	Shielded	8.2 '
Amphenol Custom Cable Q-290730013018i	TNC Jack	50 Ohms	Female	Free Hanging (In-Line)	LMR 400	Black	6000 MHz	Female	Free Hanging (In-Line)	N-Type Jack			Shielded		457.2 mm	457.2 mm
Amphenol Custom Cable Q-290730013108i	TNC Jack	50 Ohms	Female	Free Hanging (In-Line)	LMR 400	Black	6000 MHz	Female	Free Hanging (In-Line)	N-Type Jack	2.7 m	108 in	Shielded	9 ft
Amphenol Custom Cable Q-290730013.25M	TNC Jack	50 Ohms	Female	Free Hanging (In-Line)	LMR 400	Black	6000 MHz	Female	Free Hanging (In-Line)	N-Type Jack			Shielded			250 mm	9.843 "
Amphenol Custom Cable Q-290730013072i	TNC Jack	50 Ohms	Female	Free Hanging (In-Line)	LMR 400	Black	6000 MHz	Female	Free Hanging (In-Line)	N-Type Jack	1.8 m	72 in	Shielded	6 ft
Amphenol Custom Cable Q-290730013003M	TNC Jack	50 Ohms	Female	Free Hanging (In-Line)	LMR 400	Black	6000 MHz	Female	Free Hanging (In-Line)	N-Type Jack	3 m	118.1 in	Shielded	9.8 '
Amphenol Custom Cable Q-290730013084i	TNC Jack	50 Ohms	Female	Free Hanging (In-Line)	LMR 400	Black	6000 MHz	Female	Free Hanging (In-Line)	N-Type Jack	2.1 m	84 in	Shielded	7 ft

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 146.08
		25	$ 136.17
		50	$ 126.25
		100	$ 117.76
		250	$ 110.68

Description

General part information

Q-290730 Series

Cable Assembly Coaxial N-Type to TNC LMR 400 118.1" (3.0m) 9.8'

Documents

Technical documentation and resources

No documents available
