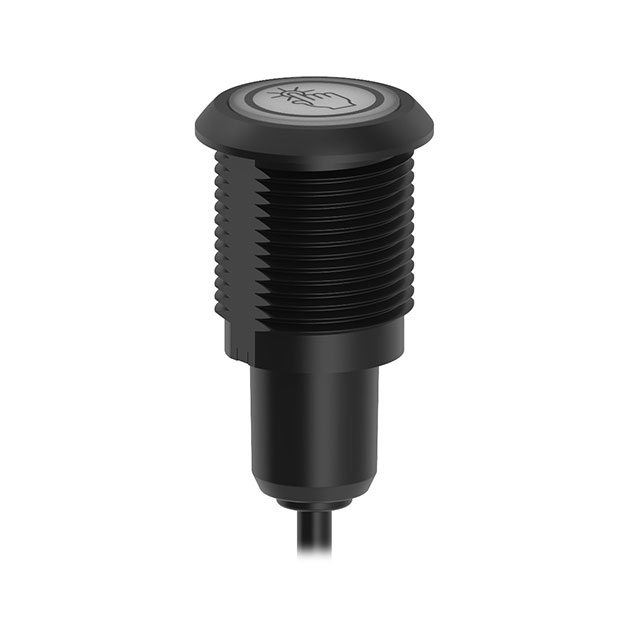

S22AMTSGRY3QP

Active

BANNER ENGINEERING

S22 PRO TOUCH SERIES: 3-COLOR RGB TOUCH SENSOR

Search across all available documentation for this part.

Active

BANNER ENGINEERING

S22 PRO TOUCH SERIES: 3-COLOR RGB TOUCH SENSOR

Technical Specifications

Parameters and characteristics for this part

Specification	S22AMTSGRY3QP

Actuator Type	Flush, Button, Round
Approval Agency	cULus, CE
Circuit	SPST-NO
Illumination Type, Color	Yellow, Red, LED, Green
Ingress Protection	IP69K, IP67
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	50 °C
Operating Temperature [Min]	-40 °C
Panel Cutout Dimensions [diameter]	22 mm
Response Time	300 ms
Switch Function	Off-Mom
Termination Style	Cable with Connector (M12)
Voltage - Supply [Max]	30 VDC
Voltage - Supply [Min]	10 VDC

Part	Termination Style	Panel Cutout Dimensions [diameter]	Mounting Type	Actuator Type	Voltage - Supply [Max]	Voltage - Supply [Min]	Illumination Type, Color	Approval Agency	Switch Function	Response Time	Circuit	Operating Temperature [Min]	Operating Temperature [Max]	Ingress Protection
BANNER ENGINEERING S22AMTSGRY3QP	Cable with Connector (M12)	22 mm	Panel Mount Front	Button Flush Round	30 VDC	10 VDC	Green LED Red Yellow	CE cULus	Off-Mom	300 ms	SPST-NO	-40 °C	50 °C	IP67 IP69K
BANNER ENGINEERING S22AMTSGRY3T	Screw Terminal	22 mm	Panel Mount Front	Button Flush Round	30 VDC	10 VDC	Green LED Red Yellow	CE cULus	Off-Mom	300 ms	SPST-NO	-40 °C	50 °C	IP67 IP69K
BANNER ENGINEERING S22AMTSGRY3	Cable Leads	22 mm	Panel Mount Front	Button Flush Round	30 VDC	10 VDC	Green LED Red Yellow	CE cULus	Off-Mom	300 ms	SPST-NO	-40 °C	50 °C	IP67 IP69K

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 82.00
Newark	Each	1	$ 82.00

General part information

S22 PRO TOUCH SERIES: 3-COLOR RGB TOUCH SENSOR

Technical documentation and resources
