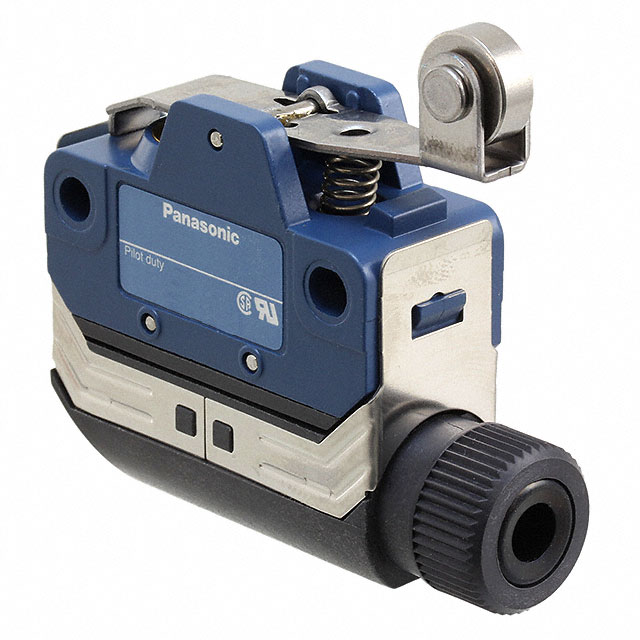

AZH2041

Obsolete

Panasonic Industrial Automation Sales

SWITCH SNAP ACTION SPDT 5A 125V

Search across all available documentation for this part.

Obsolete

Panasonic Industrial Automation Sales

SWITCH SNAP ACTION SPDT 5A 125V

Technical Specifications

Parameters and characteristics for this part

Part	Mechanical Life	Circuit	Release Force	Voltage Rating - DC	Operating Force	Switch Function	Current Rating (Amps)	Voltage Rating - AC	Actuator Type	Mounting Type	Pretravel	Pretravel	Termination Style	Electrical Life	Ingress Protection	Overtravel	Overtravel	Operating Position	Operating Position	Operating Temperature [Max]	Operating Temperature [Min]	Differential Travel	Differential Travel
Panasonic Industrial Automation Sales AZH2044	10000000 Cycles	SPDT	80 gf	30 V	400 gf	On-Mom	5 A	125 V	Lever Roller	Chassis Mount	2 mm	0.08 in	Screw Terminal	100000 Cycles	IP67 - Dust Tight Waterproof	4 mm	0.158 in	23.1 mm	0.909 in	80 C	-10 °C	0.012 "	0.3 mm
Panasonic Industrial Automation Sales AZH2041	10000000 Cycles	SPDT	80 gf	30 V	400 gf	On-Mom	5 A	125 V	Lever Roller	Chassis Mount	2 mm	0.08 in	Screw Terminal	100000 Cycles	IP67 - Dust Tight Waterproof	4 mm	0.158 in	23.1 mm	0.909 in	80 C	-10 °C	0.012 "	0.3 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Switch SPDT Chassis Mount
