Description
General part information

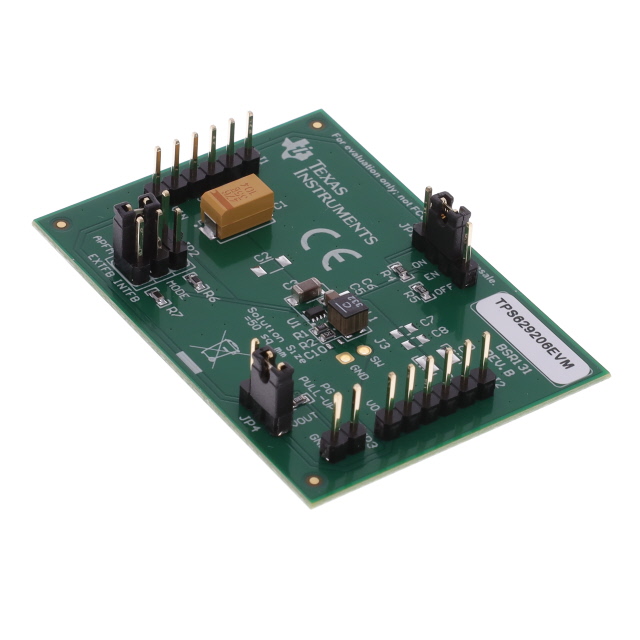

TPS629206EVM
TPS629206 - DC/DC, Step Down 1, Non-Isolated Outputs Evaluation Board
Technical Specifications
Parameters and characteristics for this part
| Specification | TPS629206EVM |
|---|---|
| Board Type | Fully Populated |
| Contents | Board |
| Current - Output | 600 mA |
| Frequency - Switching | 2.5 MHz |
| Main Purpose | DC/DC, Step Down |
| Non-Isolated Output Count | 1 count |
| Output Type | Non-Isolated |
| Regulator Topology | Buck |
| Supplied Contents | Board(s) |
| Total Output Count | 1 |
| Utilized IC / Part | TPS629206 |
| Voltage - Input (Maximum) | 17 V |
| Voltage - Input (Minimum) | 5 V |
| Voltage - Output | 3.3 V |
