M3UGK-1060K

Active

IDC CABLE - MKS10K/MC10F/MCS10K

Deep-Dive with AI

Search across all available documentation for this part.

Documents1700 Series Ribbon Cable Assembly Length Guide +1

M3UGK-1060K

Active

IDC CABLE - MKS10K/MC10F/MCS10K

Deep-Dive with AI

Documents1700 Series Ribbon Cable Assembly Length Guide +1

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 17.27
		10	$ 13.29
		25	$ 12.02
		50	$ 11.16
		100	$ 10.38
		250	$ 9.47
		500	$ 8.85
		1000	$ 8.29

Description

General part information

M3UGK Series

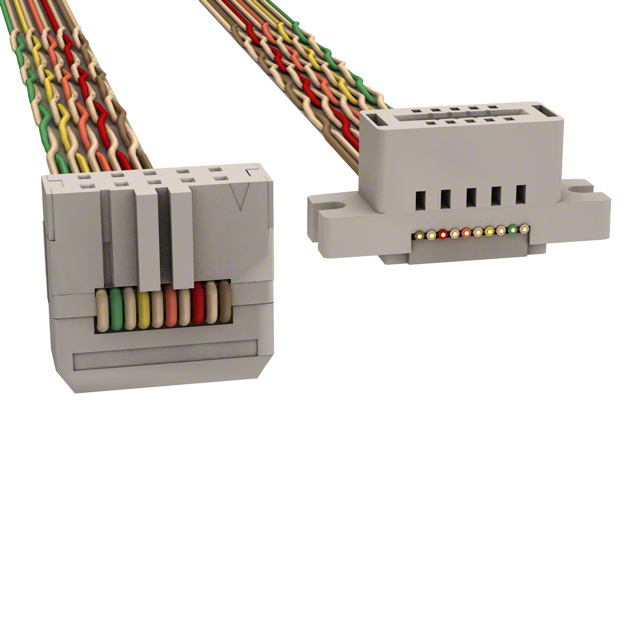

10 Position Cable Assembly Rectangular Socket to Card Edge 5.00' (1.52m)

Documents

Technical documentation and resources

1700 Series

Datasheet

Ribbon Cable Assembly Length Guide

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	M3UGK-1060K	M3UGK Series

Cable Termination	IDC	IDC
Color	Multiple, Twisted Pair (Flat)	Ribbon, Multiple, Multiple, Twisted Pair (Flat)
Connector Type	Socket to Card Edge	Socket to Card Edge
Contact Finish	Gold	Gold
Contact Finish Thickness	0.76 Ám	0.76 Ám
Contact Finish Thickness	30 Áin	30 Áin
Features	Polarizing Key, Flange (Card Edge), Strain Relief (Socket)	Polarizing Key, Flange (Card Edge), Strain Relief (Socket)
Length	1.52 m	1.52 - 508 mm
Length	5 '	1.67 - 5 '
Length	-	1.02 - 914.4 mm
Length	-	1.5 - 3.34 ft
Length	-	6 "
Length	-	0.5 '
Number of Positions	10	10 - 50
Number of Positions	-	16
Number of Rows	2	2
Pitch - Cable	0.05 "	0.05 "
Pitch - Cable	1.27 mm	1.27 mm
Pitch - Connector	0.1 in	0.1 in
Pitch - Connector	2.54 mm	2.54 mm
Shielding	Unshielded	Unshielded

M3UGK Series

IDC CABLE - MKS16K/MC16M/MCS16K

Part	Cable Termination	Contact Finish	Connector Type	Number of Positions	Color	Contact Finish Thickness	Contact Finish Thickness	Features	Shielding	Number of Rows	Pitch - Cable	Pitch - Cable	Pitch - Connector	Pitch - Connector	Length [x]	Length [x]	Number of Positions	Length	Length	Length	Length
3M M3UGK-1618R	IDC	Gold	Socket to Card Edge	16	Multiple, Ribbon	0.76 Ám	30 Áin	Flange (Card Edge), Polarizing Key, Strain Relief (Socket)	Unshielded	2	0.05 "	1.27 mm	0.1 in	2.54 mm	457.2 mm	1.5 ft
3M M3UGK-4040K	IDC	Gold	Socket to Card Edge		Multiple, Twisted Pair (Flat)	0.76 Ám	30 Áin	Flange (Card Edge), Polarizing Key, Strain Relief (Socket)	Unshielded	2	0.05 "	1.27 mm	0.1 in	2.54 mm	1.02 m	3.34 ft	40
3M M3UGK-3406J	IDC	Gold	Socket to Card Edge			0.76 Ám	30 Áin	Flange (Card Edge), Polarizing Key, Strain Relief (Socket)	Unshielded	2	0.05 "	1.27 mm	0.1 in	2.54 mm			34	152.4 mm	6 "	0.5 '
3M M3UGK-1060K	IDC	Gold	Socket to Card Edge		Multiple, Twisted Pair (Flat)	0.76 Ám	30 Áin	Flange (Card Edge), Polarizing Key, Strain Relief (Socket)	Unshielded	2	0.05 "	1.27 mm	0.1 in	2.54 mm			10	1.52 m			5 '
