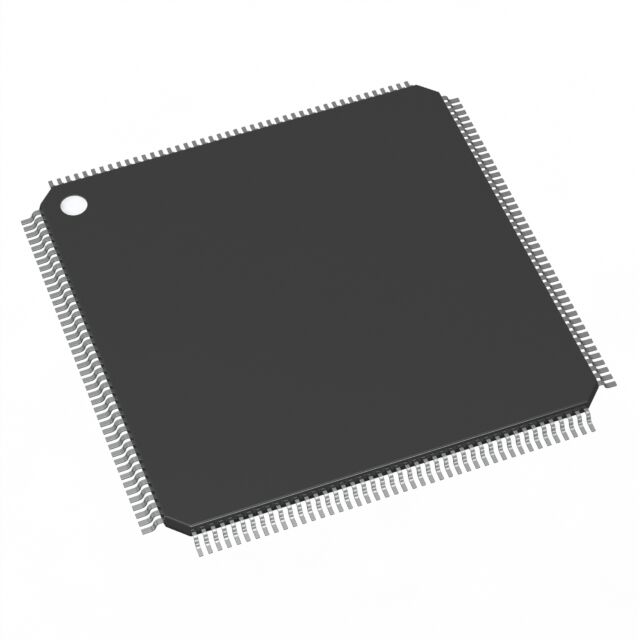

STM32F417IGT7

Active

STMicroelectronics

HIGH-PERFORMANCE FOUNDATION LINE, ARM CORTEX-M4 CORE WITH DSP AND FPU, 1 MBYTE OF FLASH MEMORY, 168 MHZ CPU, ART ACCELERATOR, ETHERNET, FSMC, HW CRYPTO

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

STM32F417IGT7

Active

STMicroelectronics

HIGH-PERFORMANCE FOUNDATION LINE, ARM CORTEX-M4 CORE WITH DSP AND FPU, 1 MBYTE OF FLASH MEMORY, 168 MHZ CPU, ART ACCELERATOR, ETHERNET, FSMC, HW CRYPTO

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	STM32F417IGT7

Connectivity	Ethernet, DCMI, IrDA, LINbus, USB OTG, UART/USART, I2C, EBI/EMI, CANbus, SPI
Core Processor	ARM® Cortex®-M4
Core Size	32-Bit Single-Core
Data Converters	A/D 24x12b, D/A 2x12b
Mounting Type	Surface Mount
Number of I/O	140
Operating Temperature [Max]	105 °C
Operating Temperature [Min]	-40 °C
Oscillator Type	Internal
Package / Case	176-LQFP
Peripherals	WDT, I2S, Brown-out Detect/Reset, POR, PWM, LCD, DMA
Program Memory Size	1 MB
Program Memory Type	FLASH
RAM Size	192 K
Speed	168 MHz
Supplier Device Package	176-LQFP (24x24)
Voltage - Supply (Vcc/Vdd) [Max]	3.6 V
Voltage - Supply (Vcc/Vdd) [Min]	1.8 V

STM32F417IE Series

High-performance foundation line, Arm Cortex-M4 core with DSP and FPU, 512 Kbytes of Flash memory, 168 MHz CPU, ART Accelerator, Ethernet, FSMC, HW crypto

Part	Mounting Type	Oscillator Type	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Voltage - Supply (Vcc/Vdd) [Min]	Voltage - Supply (Vcc/Vdd) [Max]	Program Memory Size	Supplier Device Package	Speed	Core Size	Core Processor	Number of I/O	Data Converters	Program Memory Type	Connectivity	RAM Size	Peripherals	Data Converters [custom]	Data Converters [custom]
STMicroelectronics STM32F417IEH6	Surface Mount	Internal	85 °C	-40 °C	201-UFBGA	1.8 V	3.6 V	512 KB	176+25UFBGA (10x10)	168 MHz	32-Bit Single-Core	ARM® Cortex®-M4	140	A/D 24x12b D/A 2x12b	FLASH	CANbus DCMI EBI/EMI Ethernet I2C IrDA LINbus SPI UART/USART USB OTG	192 K	Brown-out Detect/Reset DMA I2S LCD POR PWM WDT
STMicroelectronics STM32F417IGH6	Surface Mount	Internal	85 °C	-40 °C	201-UFBGA	1.8 V	3.6 V	1 MB	176+25UFBGA (10x10)	168 MHz	32-Bit Single-Core	ARM® Cortex®-M4	140	A/D 24x12b D/A 2x12b	FLASH	CANbus DCMI EBI/EMI Ethernet I2C IrDA LINbus SPI UART/USART USB OTG	192 K	Brown-out Detect/Reset DMA I2S LCD POR PWM WDT
STMicroelectronics STM32F417IGH6W	Surface Mount	Internal	85 °C	-40 °C	201-UFBGA	1.8 V	3.6 V	1 MB	176+25UFBGA (10x10)	168 MHz	32-Bit Single-Core	ARM® Cortex®-M4	140	A/D 24x12b D/A 2x12b	FLASH	CANbus DCMI EBI/EMI Ethernet I2C IrDA LINbus SPI UART/USART USB OTG	192 K	Brown-out Detect/Reset DMA I2S LCD POR PWM WDT
STMicroelectronics STM32F417VGT6	Surface Mount	Internal	85 °C	-40 °C	100-LQFP	1.8 V	3.6 V	1 MB		168 MHz	32-Bit Single-Core	ARM® Cortex®-M4	82		FLASH	CANbus DCMI EBI/EMI Ethernet I2C IrDA LINbus SPI UART/USART USB OTG	192 K	Brown-out Detect/Reset DMA I2S LCD POR PWM WDT	12 b	16
STMicroelectronics STM32F417IGT7	Surface Mount	Internal	105 °C	-40 °C	176-LQFP	1.8 V	3.6 V	1 MB	176-LQFP (24x24)	168 MHz	32-Bit Single-Core	ARM® Cortex®-M4	140	A/D 24x12b D/A 2x12b	FLASH	CANbus DCMI EBI/EMI Ethernet I2C IrDA LINbus SPI UART/USART USB OTG	192 K	Brown-out Detect/Reset DMA I2S LCD POR PWM WDT
STMicroelectronics STM32F417ZGT6	Surface Mount	Internal	85 °C	-40 °C	144-LQFP	1.8 V	3.6 V	1 MB		168 MHz	32-Bit Single-Core	ARM® Cortex®-M4	114	A/D 24x12b D/A 2x12b	FLASH	CANbus DCMI EBI/EMI Ethernet I2C IrDA LINbus SPI UART/USART USB OTG	192 K	Brown-out Detect/Reset DMA I2S LCD POR PWM WDT
STMicroelectronics STM32F417VET6	Surface Mount	Internal	85 °C	-40 °C	100-LQFP	1.8 V	3.6 V	512 KB	100-LQFP (14x14)	168 MHz	32-Bit Single-Core	ARM® Cortex®-M4	82		FLASH	CANbus DCMI EBI/EMI Ethernet I2C IrDA LINbus SPI UART/USART USB OTG	192 K	Brown-out Detect/Reset DMA I2S LCD POR PWM WDT	12 b	16

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 15.67
		10	$ 12.40
		40	$ 11.25
		120	$ 10.60
		280	$ 10.22
		520	$ 10.00
		1000	$ 9.80

Description

General part information

STM32F417IE Series

The STM32F415xx and STM32F417xx family is based on the high-performance Arm®Cortex®-M4 32-bit RISC core operating at a frequency of up to 168 MHz. The Cortex-M4 core features a Floating point unit (FPU) single precision which supports all Arm single-precision data-processing instructions and data types. It also implements a full set of DSP instructions and a memory protection unit (MPU) which enhances application security.

The STM32F415xx and STM32F417xx family incorporates high-speed embedded memories (Flash memory up to 1 Mbyte, up to 192 Kbytes of SRAM), up to 4 Kbytes of backup SRAM, and an extensive range of enhanced I/Os and peripherals connected to two APB buses, three AHB buses and a 32-bit multi-AHB bus matrix.

All devices offer three 12-bit ADCs, two DACs, a low-power RTC, twelve general-purpose 16-bit timers including two PWM timers for motor control, two general-purpose 32-bit timers. a true random number generator (RNG), and a cryptographic acceleration cell. They also feature standard and advanced communication interfaces.
