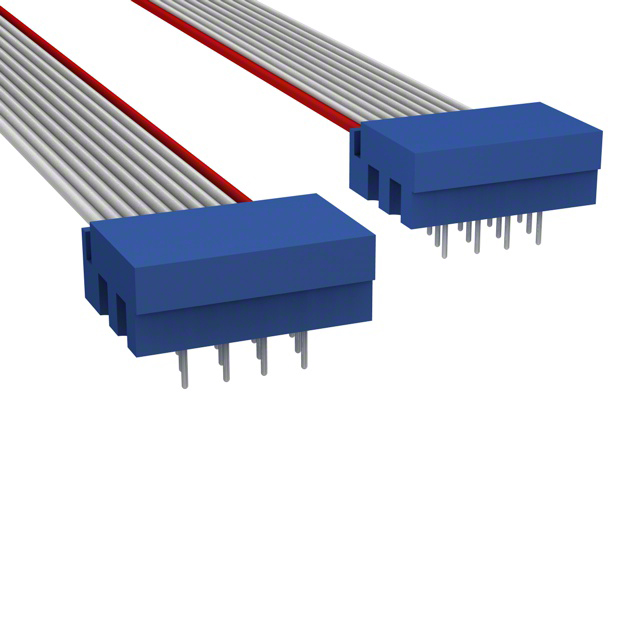

C3PPS-1006G
ActiveCW Industries
IDC CABLE - CPC10S/AE10G/CPC10S
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsRibbon Cable Assembly Length Guide
C3PPS-1006G
ActiveCW Industries
IDC CABLE - CPC10S/AE10G/CPC10S
Deep-Dive with AI
DocumentsRibbon Cable Assembly Length Guide
Technical Specifications
Parameters and characteristics for this part
| Specification | C3PPS-1006G |
|---|---|
| Cable Termination | IDC |
| Connector Type | PCB to PCB |
| Contact Finish | Tin-Lead |
| Contact Finish Thickness | 2.54 µm |
| Contact Finish Thickness | 100 µin |
| Length | 152.4 mm |
| Length | 6 " |
| Length | 0.5 ' |
| Number of Positions | 10 |
| Pitch - Cable | 0.05 " |
| Pitch - Cable | 1.27 mm |
| Pitch - Connector | 0.05 in |
| Pitch - Connector | 1.27 mm |
| Shielding | Unshielded |
| Usage | Board In |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 7.44 | |
| 10 | $ 5.70 | |||
| 25 | $ 5.14 | |||
| 50 | $ 4.77 | |||
| 100 | $ 4.42 | |||
| 250 | $ 4.02 | |||
| 500 | $ 3.75 | |||
| 1000 | $ 3.50 | |||
| 2500 | $ 3.21 | |||
Description
General part information
C3PPS-1 Series
10 Position Cable Assembly Rectangular PCB to PCB 0.500' (152.40mm, 6.00")
