Specification	644518-6

Applications	General Purpose
Connector Type	Header
Contact Finish - Mating	Tin-Lead
Contact Finish - Post	Tin-Lead
Contact Length - Mating	0.295 in
Contact Length - Post	0.14 in
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Current Rating	0 A
Current Rating	Varies by Wire Gauge
Fastening Type	Friction Lock
Insulation Color	Natural
Insulation Height	0.305 in
Insulation Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	6
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-55 °C
Overall Contact Length	0.535 in
Pitch - Mating	0.1 in
Shrouding	Shrouded - 1 Wall
Style	Cable/Wire, Board
Termination	Solder
Voltage Rating	250 V

644518 Series

Part	Contact Material	Pitch - Mating	Insulation Color	Termination	Contact Finish - Post	Contact Finish - Mating	Overall Contact Length	Contact Length - Post	Current Rating	Material Flammability Rating	Contact Length - Mating	Number of Rows	Contact Type	Connector Type	Number of Positions Loaded	Number of Positions	Fastening Type	Operating Temperature (Min)	Operating Temperature (Max)	Style	Voltage Rating	Contact Shape	Shrouding	Insulation Height	Mounting Type	Insulation Material	Applications

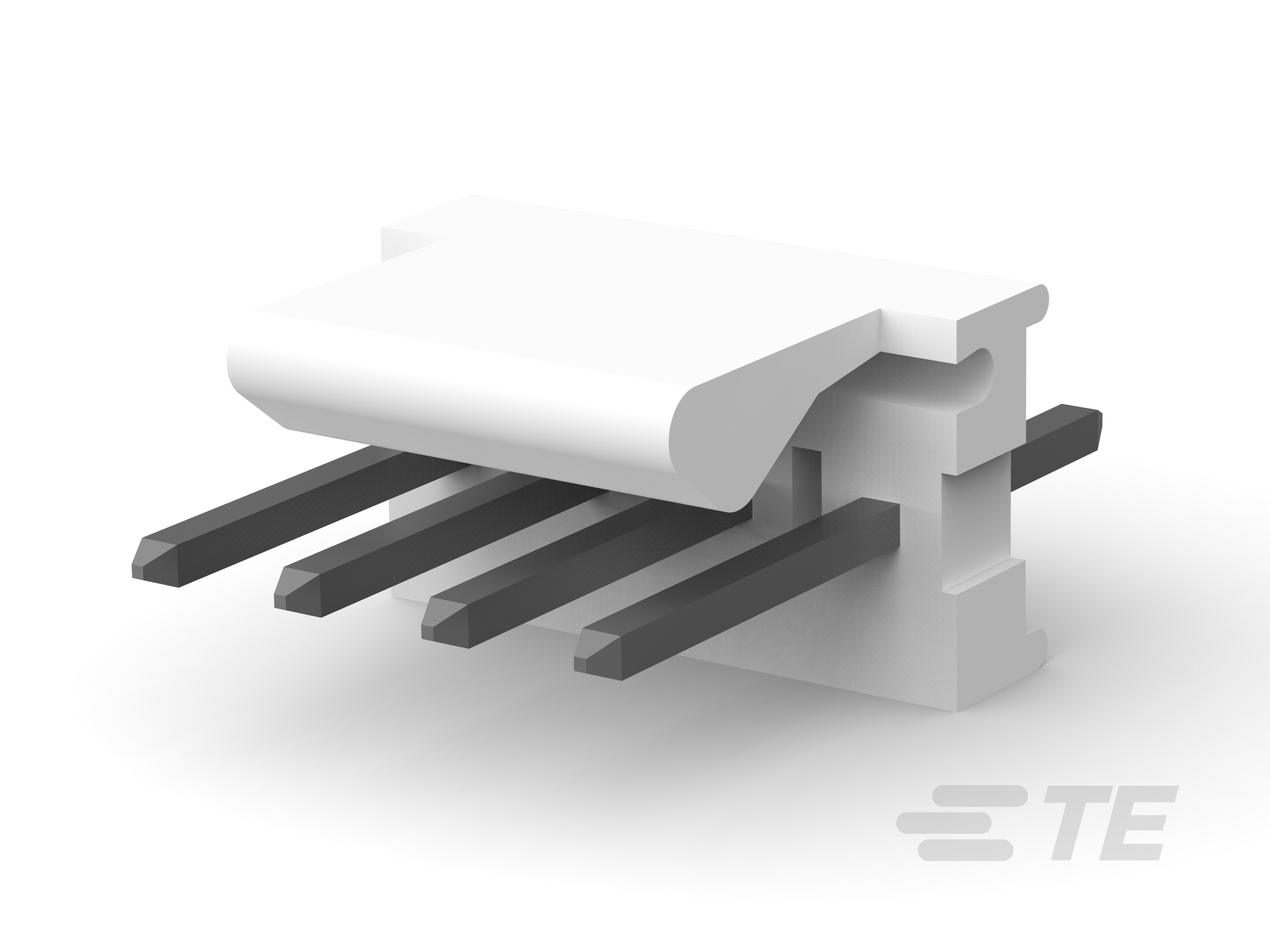

TE Connectivity AMP Connectors 644518-4	Copper Alloy	0.1 in	Natural	Solder	Tin-Lead	Tin-Lead	0.535 in	0.14 in	Varies by Wire Gauge	UL94 V-0	0.295 in	1	Male Pin	Header	All	4	Friction Lock	-55 °C	105 °C	Board Cable/Wire	250 V	Square	Shrouded - 1 Wall	0.305 in	Through Hole	Thermoplastic	General Purpose
TE Connectivity AMP Connectors 644518-6	Copper Alloy	0.1 in	Natural	Solder	Tin-Lead	Tin-Lead	0.535 in	0.14 in	Varies by Wire Gauge	UL94 V-0	0.295 in	1	Male Pin	Header	All	6	Friction Lock	-55 °C	105 °C	Board Cable/Wire	250 V	Square	Shrouded - 1 Wall	0.305 in	Through Hole	Thermoplastic	General Purpose
TE Connectivity AMP Connectors 644518-8	Copper Alloy	0.1 in	Natural	Solder	Tin-Lead	Tin-Lead	0.535 in	0.14 in	Varies by Wire Gauge	UL94 V-0	0.295 in	1	Male Pin	Header	All	8	Friction Lock	-55 °C	105 °C	Board Cable/Wire	250 V	Square	Shrouded - 1 Wall	0.305 in	Through Hole	Thermoplastic	General Purpose
