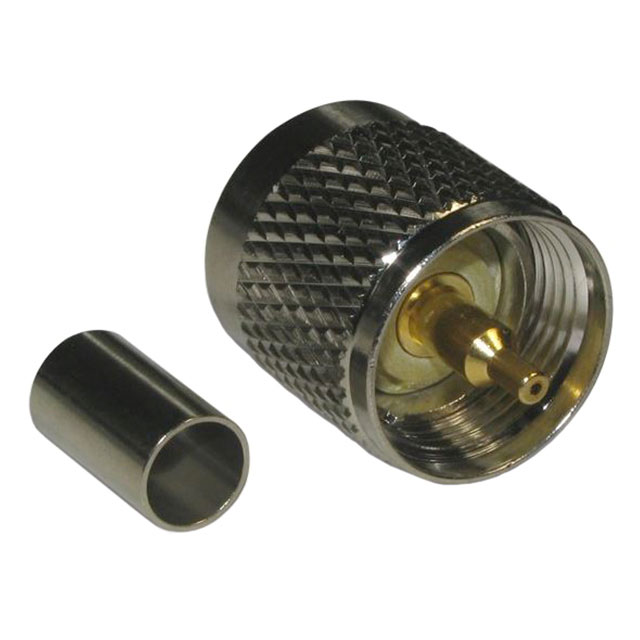

182101-10 - 182101-10

182101-10

Active
Amphenol RF

UHF STRAIGHT CRIMP PLUG RG-59 RG-62 50 OHM

Deep-Dive with AI

Search across all available documentation for this part.

182101-10 - 182101-10

182101-10

Active
Amphenol RF

UHF STRAIGHT CRIMP PLUG RG-59 RG-62 50 OHM

Deep-Dive with AI

Technical Specifications

Parameters and characteristics for this part

Specification182101-10
Body FinishNickel
Body MaterialBrass
Cable Group140, 8263, 59B, 8279, 210, Belden 8241, RG-59, 62, 9209
Center Contact MaterialBrass
Center Contact PlatingGold
Connector StyleUHF
Connector TypeMale Pin, Plug
Contact TerminationSolder
Dielectric MaterialPhenolic
Frequency - Max [Max]300 MHz
Housing ColorSilver
ImpedanceNon-Constant
Includes1 Connector, 1 Ferrule
Mounting TypeFree Hanging (In-Line)
Number of Ports1
Shield TerminationCrimp
Voltage Rating500 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 1$ 7.57
10$ 6.43
25$ 6.03
50$ 5.74
100$ 5.36
300$ 4.86
500$ 4.69
1000$ 4.17
NewarkEach 100$ 5.42
250$ 5.25

Description

General part information

182101 Series

UHF Connector Plug, Male Pin Non-Constant Free Hanging (In-Line) Solder

Documents

Technical documentation and resources

No documents available
