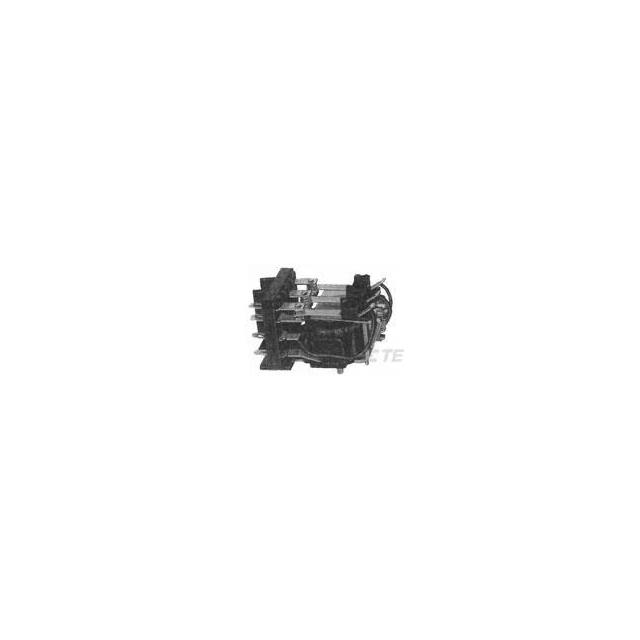

1393110-7
ActiveTE Connectivity Potter & Brumfield Relays
RELAY GEN PURPOSE 4PDT 10A 110V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1393110-7
ActiveTE Connectivity Potter & Brumfield Relays
RELAY GEN PURPOSE 4PDT 10A 110V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 1393110-7 |
|---|---|
| Coil Current | 16.4 mA |
| Coil Insulation | Class B |
| Coil Resistance | 6.72 kOhms |
| Coil Type | Non Latching |
| Coil Voltage | 110 VDC |
| Contact Form | 4PDT (4 Form C) |
| Contact Material | Silver Cadmium Oxide (AgCdO) |
| Contact Rating (Current) | 10 A |
| Mounting Type | Chassis Mount |
| Must Operate Voltage | 82.5 VDC |
| Operate Time | 15 ms |
| Operating Temperature [Max] | 65 °C |
| Operating Temperature [Min] | -45 °C |
| Relay Type | General Purpose |
| Release Time | 10 ms |
| Switching Voltage | 240 VAC |
| Termination Style | Quick Connect - 0.187" (4.7mm) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 2 | $ 66.11 | |
| 6 | $ 63.66 | |||
| 22 | $ 62.44 | |||
Description
General part information
KU-17D Series
General Purpose Relay 4PDT (4 Form C) 110VDC Coil Chassis Mount
