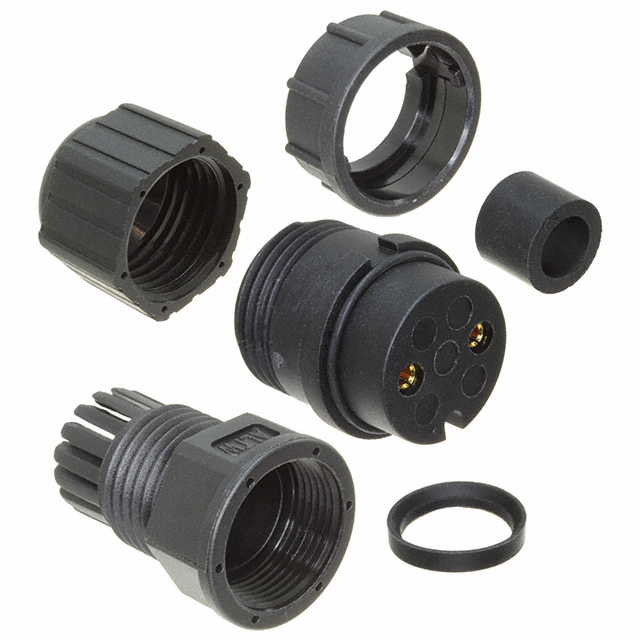

DC-02BFFA-SL7001

Active

Amphenol LTW

CERES, LARGE SIZE, PLASTIC, 20A, 02 PINS, FEMALE CONNECTOR, FEMALE CONTACT, STRAIGHT, SCREW THREAD, SOLDER, FIELD INSTALLABLE, 5

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

DC-02BFFA-SL7001

Active

Amphenol LTW

CERES, LARGE SIZE, PLASTIC, 20A, 02 PINS, FEMALE CONNECTOR, FEMALE CONTACT, STRAIGHT, SCREW THREAD, SOLDER, FIELD INSTALLABLE, 5

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DC-02BFFA-SL7001

Backshell Material, Plating	Polyamide (PA), Nylon
Cable Opening [Max] [custom]	10.8 mm
Cable Opening [Max] [custom]	0.425 in
Cable Opening [Min] [custom]	0.217 in
Cable Opening [Min] [custom]	5.5 mm
Color	Black
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	20 A
Features	Coupling Nut, Backshell
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Polyamide (PA), Nylon, Glass Filled
Mounting Type	Free Hanging (In-Line)
Number of Positions	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shell Material	Nylon, Glass Filled, Polyamide (PA)
Shell Size - Insert	D
Shielding	Unshielded

DC-02BFFA Series

Part	Insert Material	Current Rating (Amps)	Shielding	Color	Contact Material	Connector Type	Voltage Rating	Operating Temperature [Min]	Operating Temperature [Max]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Primary Material	Fastening Type	Shell Size - Insert	Material Flammability Rating	Shell Material	Mounting Type	Contact Finish - Mating	Termination	Orientation	Ingress Protection	Features	Number of Positions	Cable Opening [custom]	Cable Opening [custom]	Contact Type	Contact Shape	Note	Type	Housing Color	Backshell Material, Plating
Amphenol LTW DC-02BFFA-QL8LPP	Polyamide (PA) Nylon Glass Filled	20 A	Unshielded	Black	Copper Alloy	Female Sockets Plug	300 VAC	-40 °C	105 ░C	12 mm	14 mm	0.472 in	0.551 in	Plastic	Push-Pull	D	UL94 V-0	Glass Filled Nylon Polyamide (PA)	Free Hanging (In-Line)	Gold	Crimp	Keyed	IP68 - Dust Tight Waterproof	Backshell	2
Amphenol LTW DC-02BFFA-QL8MPP	Polyamide (PA) Nylon Glass Filled	20 A	Unshielded	Black	Copper Alloy	Female Sockets Plug	300 VAC	-40 °C	105 ░C					Plastic	Push-Pull	D	UL94 V-0	Glass Filled Nylon Polyamide (PA)	Free Hanging (In-Line)	Gold	Crimp	Keyed	IP68 - Dust Tight Waterproof	Backshell	2	10 mm 12 mm	0.394 in 0.472 in
Amphenol LTW DC-02BFFA-QL8LNP	Thermoplastic		Unshielded			Plug Housing		-40 °C	105 ░C					Plastic	Push-Pull	D			Free Hanging (In-Line)			Keyed	IP68 - Dust Tight Waterproof	Backshell	2			Crimp	Circular	Contacts Not Included	For Female Sockets	Black
Amphenol LTW DC-02BFFA-QL8SNP	Thermoplastic		Unshielded			Plug Housing		-40 °C	105 ░C					Plastic		D			Free Hanging (In-Line)			Keyed	IP68 - Dust Tight Waterproof	Backshell	2			Crimp	Circular	Contacts Not Included	For Female Sockets	Black
Amphenol LTW DC-02BFFA-SL7001	Polyamide (PA) Nylon Glass Filled	20 A	Unshielded	Black	Copper Alloy	Female Sockets Plug		-40 °C	105 ░C	5.5 mm	10.8 mm	0.217 in	0.425 in	Plastic		D		Glass Filled Nylon Polyamide (PA)	Free Hanging (In-Line)	Gold		Keyed	IP67 - Dust Tight Waterproof	Backshell Coupling Nut	2								Nylon Polyamide (PA)
Amphenol LTW DC-02BFFA-QL8SPP	Polyamide (PA) Nylon Glass Filled	20 A	Unshielded	Black	Copper Alloy	Female Sockets Plug	300 VAC	-40 °C	105 ░C	8 mm	10 mm	0.315 in	0.394 in	Plastic	Push-Pull	D	UL94 V-0	Glass Filled Nylon Polyamide (PA)	Free Hanging (In-Line)	Gold	Crimp	Keyed	IP68 - Dust Tight Waterproof	Backshell	2

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 8.48
		10	$ 7.52
		30	$ 7.23
		50	$ 6.94
		100	$ 6.79
Newark	Each	10	$ 9.09
		25	$ 8.34
		50	$ 7.45
		100	$ 6.85
		250	$ 6.65

Description

General part information

DC-02BFFA Series

2 Position Circular Connector Plug, Female Sockets Solder Cup
