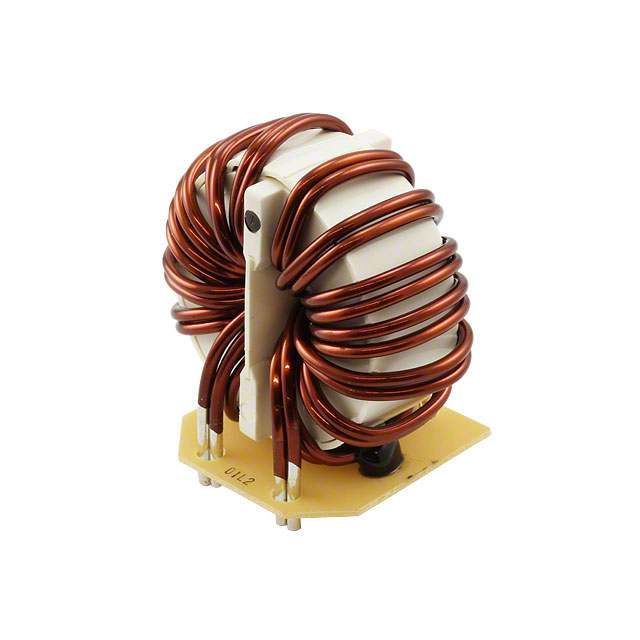

SCR-080-1R1A020J - SCR38-350-1R8B008J

SCR-080-1R1A020J

Active
KEMET

COMMON MODE CHOKE, 2MH, 8A, RAD LEAD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsManufacturer Catalogue ENKEM_LF0014_SCR.pdf+2
SCR-080-1R1A020J - SCR38-350-1R8B008J

SCR-080-1R1A020J

Active
KEMET

COMMON MODE CHOKE, 2MH, 8A, RAD LEAD

Deep-Dive with AI

DocumentsManufacturer Catalogue ENKEM_LF0014_SCR.pdf+2

Technical Specifications

Parameters and characteristics for this part

SpecificationSCR-080-1R1A020J
Current Rating (Max) [Max]8 A
DC Resistance (DCR) (Max) [Max]15.9 mOhm
Filter TypePower Line
Height (Max) [Max] [z]29 mm
Height (Max) [Max] [z]1.142 in
Inductance @ Frequency2 mH
Mounting TypeThrough Hole
Number of Lines2
Operating Temperature [Max]120 °C
Operating Temperature [Min]-25 °C
Package / CaseHorizontal
Package / Case4 Lead
Size / Dimension [x]29 mm
Size / Dimension [x]1.142 inches
Size / Dimension [y]23 mm
Size / Dimension [y]0.906 in
Voltage Rating - AC250 V
Voltage Rating - DC250 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 1$ 3.77
10$ 2.87
40$ 2.66
NewarkEach 1$ 5.57
10$ 4.51
25$ 4.01
50$ 3.83
100$ 3.64
500$ 3.45
1000$ 3.12

Description

General part information

SCR-080 Series

2 mH @ 10 kHz 2 Line Common Mode Choke Through Hole 8A DCR 15.9mOhm
