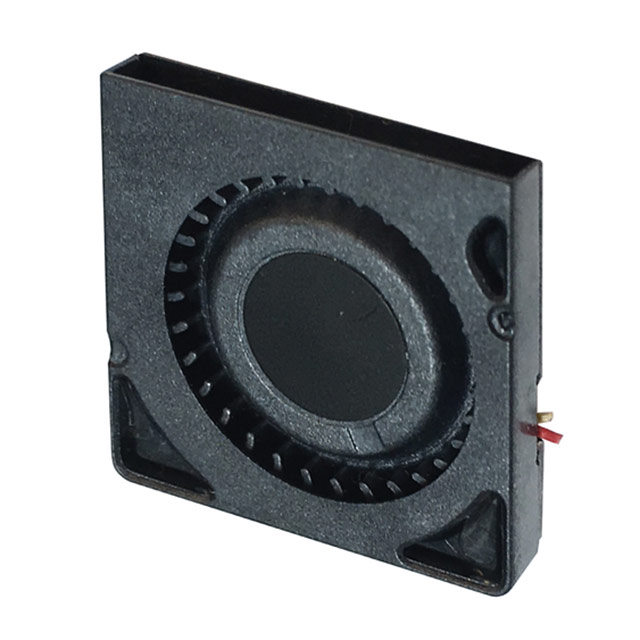

BSB01503HA3-00CGE
ActiveDelta Electronics
DC FAN AXIAL SLEEVE BEARING 3V 2V TO 3.5V 0.17CFM 30DB 15 X 15 X 3.5MM
Deep-Dive with AI
Search across all available documentation for this part.
BSB01503HA3-00CGE
ActiveDelta Electronics
DC FAN AXIAL SLEEVE BEARING 3V 2V TO 3.5V 0.17CFM 30DB 15 X 15 X 3.5MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | BSB01503HA3-00CGE |
|---|---|
| Air Flow | 0.005 m³/min |
| Air Flow | 0.17 CFM |
| Bearing Type | Sleeve |
| Current Rating (Amps) | 50 mA |
| Fan Type | Blower |
| Features | Speed Sensor (Tach), Locked Rotor Protection |
| Lifetime @ Temp. | 30000 Hrs |
| Material - Blade | Plastic |
| Material - Frame | Plastic |
| Noise | 30 dB(A) |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -10 °C |
| Operating Temperature [Min] | -10 °C |
| Power (Watts) | 150 mW |
| RPM | 13800 RPM |
| Size / Dimension | Square |
| Size / Dimension [x] | 15 mm |
| Size / Dimension [z] | 15 mm |
| Static Pressure | 0.154 in H2O |
| Static Pressure | 38.4 Pa |
| Termination | 3 Position Rectangular Connector |
| Voltage - Rated | 3 VDC |
| Voltage Range [Max] | 3.5 VDC |
| Voltage Range [Min] | 2 V |
| Weight | 1.36 g |
| Weight | 0.003 lb |
| Width [y] | 3.5 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 20.04 | |
| 10 | $ 19.13 | |||
| 25 | $ 17.31 | |||
| 50 | $ 15.94 | |||
| 195 | $ 14.30 | |||
| 390 | $ 13.21 | |||
| 585 | $ 12.30 | |||
Description
General part information
BSB01503 Series
Fan Blower 3VDC Square - 15mm L x 15mm H Sleeve 0.170 CFM (0.005m³/min) 3 Position Rectangular Connector
