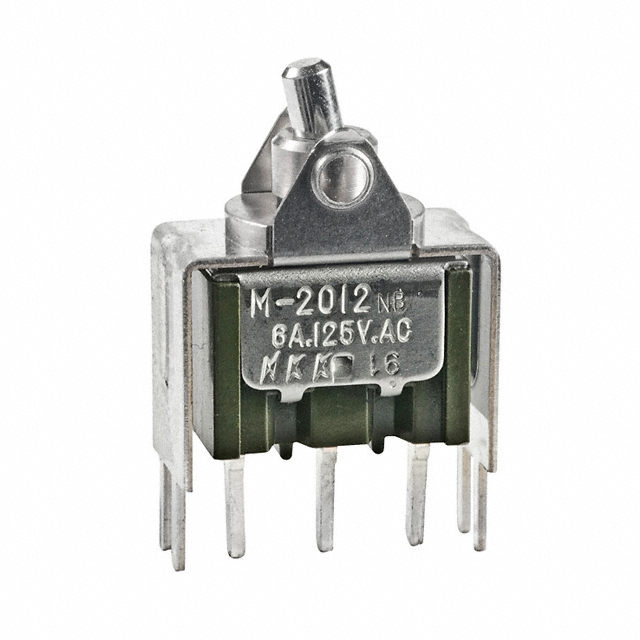

Specification	M2012TXW13

Actuator Marking	Varies by Cap
Actuator Type	Actuator Arm, Cap Required
Approval Agency	UL, CSA
Circuit	SPDT
Current Rating	4 A, 6 A
Electrical Life (Cycles)	25000
Features	Epoxy Sealed Terminals
Mechanical Life (Cycles)	50000 Cycles
Mounting Type	Through Hole
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-30 °C
Switch Function	On-On
Termination Style	PC Pin
Voltage Rating - AC	125 V
Voltage Rating - DC	30 V

M2012TX Series

Part	Voltage Rating - AC	Switch Function	Current Rating	Operating Temperature (Max)	Operating Temperature (Min)	Mounting Type	Actuator Marking	Features	Voltage Rating - DC	Termination Style	Circuit	Actuator Type	Approval Agency	Electrical Life (Cycles)	Mechanical Life (Cycles)	Color - Actuator/Cap
NKK Switches M2012TXG13/108	28 V	On-On	0.4 VA	85 °C	-30 °C	Through Hole	Varies by Cap	Epoxy Sealed Terminals	28 V	PC Pin	SPDT	Actuator Arm Cap Required	CSA UL	50000	50000 Cycles
NKK Switches M2012TXG30-DC	28 V	On-On	0.4 VA	85 °C	-30 °C	Right Angle Through Hole	No Marking	Epoxy Sealed Terminals	28 V	PC Pin	SPDT	Concave (Standard V)	CSA UL	50000	50000 Cycles	Red
NKK Switches M2012TXW13-DG	125 V	On-On	4 A 6 A	85 °C	-30 °C	Through Hole	No Marking	Epoxy Sealed Terminals	30 V	PC Pin	SPDT	Concave (Standard V)	CSA UL	25000	50000 Cycles	Blue
NKK Switches M2012TXW13-DC	125 V	On-On	4 A 6 A	85 °C	-30 °C	Through Hole	No Marking	Epoxy Sealed Terminals	30 V	PC Pin	SPDT	Concave (Standard V)	CSA UL	25000	50000 Cycles	Red
NKK Switches M2012TXG13-EA	28 V	On-On	0.4 VA	85 °C	-30 °C	Through Hole	No Marking	Epoxy Sealed Terminals	28 V	PC Pin	SPDT	Paddle	CSA UL	50000	50000 Cycles	Black
NKK Switches M2012TXW41-GA	125 V	On-On	4 A 6 A	85 °C	-30 °C	Right Angle Through Hole Vertical	No Marking	Epoxy Sealed Terminals	30 V	PC Pin	SPDT	Paddle	CSA UL	25000	50000 Cycles	Black
NKK Switches M2012TXW30-FA	125 V	On-On	4 A 6 A	85 °C	-30 °C	Right Angle Through Hole	No Marking	Epoxy Sealed Terminals	30 V	PC Pin	SPDT	Concave (Standard V)	CSA UL	25000	50000 Cycles	Black
NKK Switches M2012TXW41-DC	125 V	On-On	4 A 6 A	85 °C	-30 °C	Right Angle Through Hole Vertical	No Marking	Epoxy Sealed Terminals	30 V	PC Pin	SPDT	Concave (Standard V)	CSA UL	25000	50000 Cycles	Red
NKK Switches M2012TXW13-DH	125 V	On-On	4 A 6 A	85 °C	-30 °C	Through Hole	No Marking	Epoxy Sealed Terminals	30 V	PC Pin	SPDT	Concave (Standard V)	CSA UL	25000	50000 Cycles	Gray
NKK Switches M2012TXG13-FC	28 V	On-On	0.4 VA	85 °C	-30 °C	Through Hole	No Marking	Epoxy Sealed Terminals	28 V	PC Pin	SPDT	Concave (Standard V)	CSA UL	50000	50000 Cycles	Red
