M2012TXG13-EA

Obsolete

NKK Switches

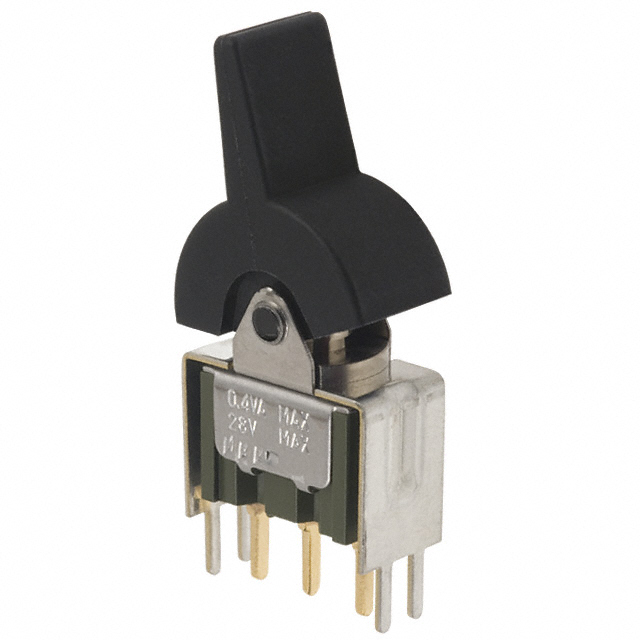

SWITCH ROCKER SPDT 0.4VA 28V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

M2012TXG13-EA

Obsolete

NKK Switches

SWITCH ROCKER SPDT 0.4VA 28V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M2012TXG13-EA

Actuator Marking	No Marking
Actuator Type	Paddle
Approval Agency	CSA, UL
Circuit	SPDT
Color - Actuator/Cap	Black
Current Rating (Amps)	0.4 VA
Electrical Life	50000 Cycles
Features	Epoxy Sealed Terminals
Mounting Type	Through Hole
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Switch Function	On-On
Termination Style	PC Pin
Voltage Rating - AC	28 V
Voltage Rating - DC	28 V

M2012TX Series

Part	Features	Actuator Type	Operating Temperature [Min]	Operating Temperature [Max]	Approval Agency	Circuit	Current Rating (Amps)	Mounting Type	Termination Style	Voltage Rating - DC	Switch Function	Voltage Rating - AC	Actuator Marking	Electrical Life	Color - Actuator/Cap
NKK Switches M2012TXG13/108	Epoxy Sealed Terminals	Actuator Arm Cap Required	-30 ░C	85 °C	CSA UL	SPDT	0.4 VA	Through Hole	PC Pin	28 V	On-On	28 V	Varies by Cap	50000 Cycles
NKK Switches M2012TXG30-DC	Epoxy Sealed Terminals	Concave (Standard V)	-30 ░C	85 °C	CSA UL	SPDT	0.4 VA	Through Hole Right Angle	PC Pin	28 V	On-On	28 V	No Marking	50000 Cycles	Red
NKK Switches M2012TXW13-DG	Epoxy Sealed Terminals	Concave (Standard V)	-30 ░C	85 °C	CSA UL	SPDT	4 A 6 A	Through Hole	PC Pin	30 V	On-On	125 V	No Marking	25000 Steps	Blue
NKK Switches M2012TXW13-DC	Epoxy Sealed Terminals	Concave (Standard V)	-30 ░C	85 °C	CSA UL	SPDT	4 A 6 A	Through Hole	PC Pin	30 V	On-On	125 V	No Marking	25000 Steps	Red
NKK Switches M2012TXG13-EA	Epoxy Sealed Terminals	Paddle	-30 ░C	85 °C	CSA UL	SPDT	0.4 VA	Through Hole	PC Pin	28 V	On-On	28 V	No Marking	50000 Cycles	Black
NKK Switches M2012TXW30-FA	Epoxy Sealed Terminals	Concave (Standard V)	-30 ░C	85 °C	CSA UL	SPDT	4 A 6 A	Through Hole Right Angle	PC Pin	30 V	On-On	125 V	No Marking	25000 Steps	Black
NKK Switches M2012TXW41-DC	Epoxy Sealed Terminals	Concave (Standard V)	-30 ░C	85 °C	CSA UL	SPDT	4 A 6 A	Right Angle Through Hole Vertical	PC Pin	30 V	On-On	125 V	No Marking	25000 Steps	Red
NKK Switches M2012TXG13-FC	Epoxy Sealed Terminals	Concave (Standard V)	-30 ░C	85 °C	CSA UL	SPDT	0.4 VA	Through Hole	PC Pin	28 V	On-On	28 V	No Marking	50000 Cycles	Red
NKK Switches M2012TXW13-EA	Epoxy Sealed Terminals	Paddle	-30 ░C	85 °C	CSA UL	SPDT	4 A 6 A	Through Hole	PC Pin	30 V	On-On	125 V	No Marking	25000 Steps	Black
NKK Switches M2012TXW30-DA	Epoxy Sealed Terminals	Concave (Standard V)	-30 ░C	85 °C	CSA UL	SPDT	4 A 6 A	Through Hole Right Angle	PC Pin	30 V	On-On	125 V	No Marking	25000 Steps	Black
