Specification	2080333052

Connector Type	Header
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	39.4 µin
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating	3 A
Fastening Type	Push-Pull
Features	Solder Retention
Insulation Color	Natural
Insulation Height	0.214 in
Insulation Material	Nylon, Polyamide (PA)
Material Flammability Rating	UL94 V-0
Mounting Type	Right Angle, Surface Mount
Number of Positions	5
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Pitch - Mating	0.071 in
Shrouding	Shrouded - 4 Wall
Style	Cable/Wire, Board
Termination	Solder
Voltage Rating	14 VDC
Voltage Rating (Type)	DC

208033 Series

ConnTAK50 Header, Single Row, Right-Angle, Surface Mount, 6 Circuits, Key C, Blue

Part	Contact Shape	Mounting Type	Number of Rows	Contact Finish - Mating	Insulation Material	Number of Positions Loaded	Insulation Color	Termination	Fastening Type	Pitch - Mating	Current Rating	Current Rating	Connector Type	Voltage Rating	Voltage Rating (Type)	Contact Type	Number of Positions	Shrouding	Contact Material	Style	Material Flammability Rating	Operating Temperature (Min)	Operating Temperature (Max)	Contact Finish Thickness - Mating	Insulation Height	Features	Contact Finish - Post
Molex 2080333063	Square	Right Angle Surface Mount	1	Tin	Glass Filled Nylon 9T Polyamide (PA9T)	All	Blue	Solder	Latch Holder	0.071 in	0 A	Varies by Wire Gauge	Header	14 VDC	DC	Male Pin	6	Shrouded - 4 Wall	Brass	Board Cable/Wire	UL94 V-0	-40 °C	105 °C	39.4 µin	0.253 in
Molex 2080333034
Molex 2080333053
Molex 2080333064	Square	Right Angle Surface Mount	1	Tin	Glass Filled Nylon 9T Polyamide (PA9T)	All	Violet	Solder	Latch Holder	0.071 in	0 A	Varies by Wire Gauge	Header	14 VDC	DC	Male Pin	6	Shrouded - 4 Wall	Brass	Board Cable/Wire	UL94 V-0	-40 °C	105 °C	39.4 µin	0.253 in
Molex 2080333062
Molex 2080333042	Square	Right Angle Surface Mount	1	Tin	Glass Filled Nylon 9T Polyamide (PA9T)	All	Natural	Solder	Latch Holder	0.071 in	0 A	Varies by Wire Gauge	Header	14 VDC	DC	Male Pin	4	Shrouded - 4 Wall	Brass	Board Cable/Wire	UL94 V-0	-40 °C	105 °C	39.4 µin	0.253 in

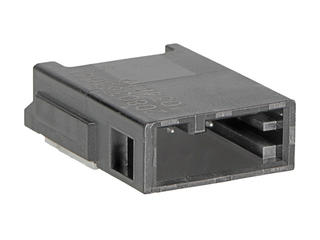

Molex 2080333041	Rectangular	Right Angle Surface Mount	1	Tin	Glass Filled Nylon 9T Polyamide (PA9T)	All	Black	Solder	Push-Pull	0.071 in	0 A	Varies by Wire Gauge	Header			Male Pin	4	Shrouded - 4 Wall	Brass	Board Cable/Wire	UL94 V-0	-40 °C	105 °C	39.4 µin

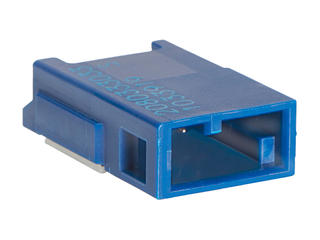

Molex 2080333033	Square	Right Angle Surface Mount	1	Tin	Glass Filled Nylon 9T Polyamide (PA9T)	All	Blue	Solder	Latch Holder	0.071 in	0 A	Varies by Wire Gauge	Header	14 VDC	DC	Male Pin	3	Shrouded - 4 Wall	Brass	Board Cable/Wire	UL94 V-0	-40 °C	105 °C	39.4 µin	0.253 in

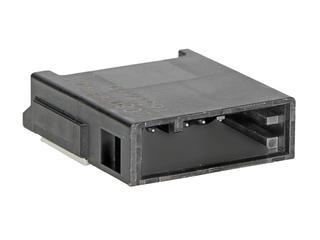

Molex 2080333061
Molex 2080333052	Square	Right Angle Surface Mount	1	Tin	Nylon Polyamide (PA)	All	Natural	Solder	Push-Pull	0.071 in	3 A		Header	14 VDC	DC	Male Pin	5	Shrouded - 4 Wall	Brass	Board Cable/Wire	UL94 V-0	-40 °C	105 °C	39.4 µin	0.214 in	Solder Retention	Tin
