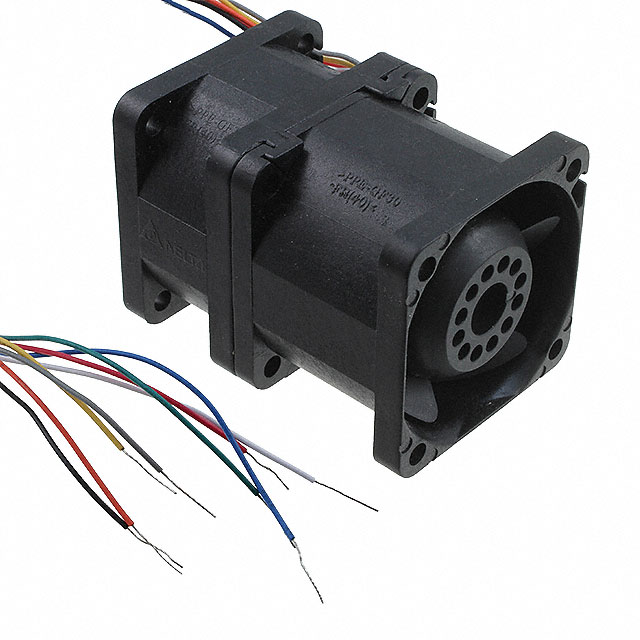

Specification	GFM0412SS-DE1PB7Q

Air Flow	21.6 CFM
Approval Agency	TUV, cULus
Bearing Type	Ball
Current Rating	1.1 A
Fan Type	Tubeaxial (Dual)
Features	PWM Control, Locked Rotor Protection, Speed Sensor (Tach)
Front RPM	19000 RPM
Lifetime	70000 Hrs
Material - Blade	Plastic
Material - Frame	Plastic
Noise	68.5 dB
Operating Temperature (Max)	158 °F
Operating Temperature (Min)	14 °F
Power (Watts)	12.6 W
Rear RPM	19250 RPM
Size / Dimension Height	40 mm
Size / Dimension Length	40 mm
Size / Dimension Shape	Square
Static Pressure	3.416 in H2O
Termination	4 Wire Leads per Fan
Termination Leads Count	4
Termination Type	Wire Leads per Fan
Voltage - Rated	12 VAC
Voltage Range (Max)	12.6 VDC
Voltage Range (Min)	10.8 VDC
Weight	0.225 lb
Width	56 mm

GFM0412 Series

Part	Approval Agency	Bearing Type	Operating Temperature (Max)	Operating Temperature (Min)	Air Flow	Noise	Voltage - Rated	Power (Watts)	Width	Rear RPM	Front RPM	Static Pressure	Size / Dimension Length	Size / Dimension Shape	Size / Dimension Height	Weight	Features	Fan Type	Termination Leads Count	Termination Type	Termination	Lifetime	Current Rating	Voltage Range (Min)	Voltage Range (Max)	Material - Blade	Material - Frame
Delta Electronics GFM0412SS-DE1PB7Q	cULus TUV	Ball	158 °F	14 °F	21.6 CFM	68.5 dB	12 VAC	12.6 W	56 mm	19250 RPM	19000 RPM	3.416 in H2O	40 mm	Square	40 mm	0.225 lb	Locked Rotor Protection PWM Control Speed Sensor (Tach)	Tubeaxial (Dual)	4	Wire Leads per Fan	4 Wire Leads per Fan	70000 Hrs	1.1 A	10.8 VDC	12.6 VDC	Plastic	Plastic
