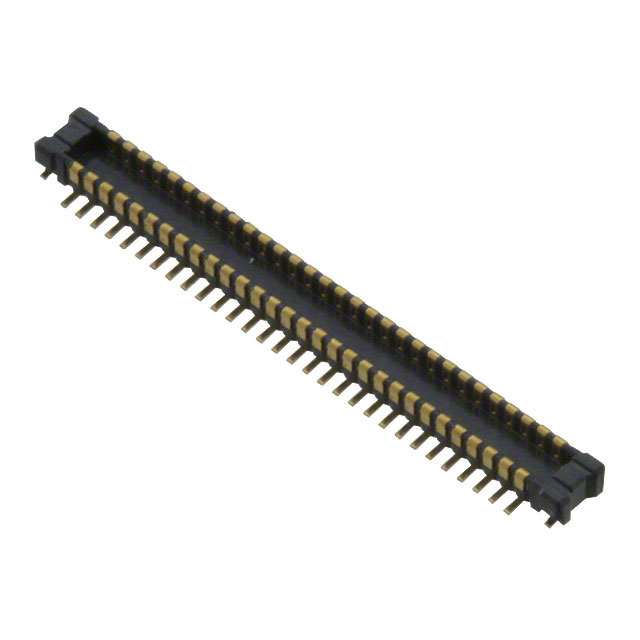

AXE660124A

Active

Panasonic Electric Works

CONN HDR 60POS SMD GOLD

Search across all available documentation for this part.

Active

Panasonic Electric Works

CONN HDR 60POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	AXE660124A

Connector Type	Header, Outer Shroud Contacts
Contact Finish	Gold
Features	Solder Retention
Height Above Board	0.026 in
Height Above Board	0.65 mm
Mated Stacking Heights	1 mm, 0.8 mm
Mounting Type	Surface Mount
Number of Positions	60
Number of Rows	2
Pitch [x]	0.016 in
Pitch [x]	0.4 mm

Part	Mounting Type	Connector Type	Number of Rows	Pitch [x]	Pitch [x]	Contact Finish	Height Above Board	Height Above Board	Number of Positions	Features	Mated Stacking Heights
Panasonic Electric Works AXE660124A	Surface Mount	Header Outer Shroud Contacts	2	0.016 in	0.4 mm	Gold	0.026 in	0.65 mm	60	Solder Retention	0.8 mm 1 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Strip	500	$ 3.09

General part information

60 Position Connector Header, Outer Shroud Contacts Surface Mount Gold
