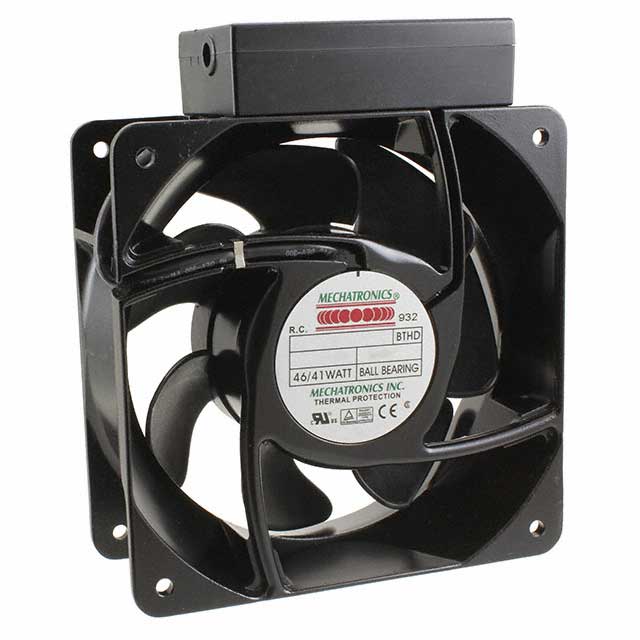

UF16FC23-BTHR

Active

Mechatronics Fan Group

FAN AXIAL 160X62MM 230VAC TERM

Search across all available documentation for this part.

Active

Mechatronics Fan Group

FAN AXIAL 160X62MM 230VAC TERM

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	UF16FC23-BTHR	UF16F Series

Air Flow	7.42 m³/min	7.42 m³/min
Air Flow	265 CFM	265 CFM
Approval Agency	CE, cUL, TUV, UL	CE, cUL, TUV, UL
Bearing Type	Ball	Ball
Current Rating (Amps)	0.17 A	0.17 - 0.34 A
Fan Type	Tubeaxial	Tubeaxial
Features	Thermal Overload Protector (TOP), Permanent Split Capacitor Motor	Thermal Overload Protector (TOP), Permanent Split Capacitor Motor
Material - Blade	Polybutylene Terephthalate (PBT)	Polybutylene Terephthalate (PBT)
Material - Frame	Aluminum	Aluminum
Noise	56 dB	56 dB
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	-40 °C	-40 °C
Operating Temperature [Min]	-40 °C	-40 °C
Power (Watts)	41 W	41 W
RPM	3400 RPM	3400 RPM
Size / Dimension [x]	160 mm	160 mm
Size / Dimension [z]	160 mm	160 mm
Static Pressure	179.3 Pa	179.3 Pa
Static Pressure	0.72 in H2O	0.72 in H2O
Termination	2 Terminals	2 Terminals, 2 Wire Leads
Voltage - Rated	230 VAC	115 - 230 VAC
Weight	2.8 lbs	2.8 lbs
Weight	1.3 kg	1.3 kg
Width [x]	62 mm	62 mm

FAN AXIAL 160X62MM 230VAC TERM

Part	Material - Frame	Weight	Weight	Power (Watts)	Noise	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Air Flow	Air Flow	Approval Agency	Voltage - Rated	Termination	Width [x]	Static Pressure	Static Pressure	Features	Current Rating (Amps)	Size / Dimension [z]	Size / Dimension [x]	Fan Type	Bearing Type	RPM	Material - Blade
Mechatronics Fan Group UF16FC23-BTHR	Aluminum	2.8 lbs	1.3 kg	41 W	56 dB	70 °C	70 °C	-40 °C	-40 °C	7.42 m³/min	265 CFM	CE, cUL, TUV, UL	230 VAC	2 Terminals	62 mm	179.3 Pa	0.72 in H2O	Permanent Split Capacitor Motor, Thermal Overload Protector (TOP)	0.17 A	160 mm	160 mm	Tubeaxial	Ball	3400 RPM	Polybutylene Terephthalate (PBT)
Mechatronics Fan Group UF16FC12-BWHR4	Aluminum			41 W	56 dB					7.42 m³/min	265 CFM		115 VAC	2 Wire Leads	62 mm	179.3 Pa	0.72 in H2O	Permanent Split Capacitor Motor, Thermal Overload Protector (TOP)	0.34 A	160 mm	160 mm	Tubeaxial	Ball	3400 RPM	Polybutylene Terephthalate (PBT)
Mechatronics Fan Group UF16FC23-BWHR4	Aluminum			41 W	56 dB					7.42 m³/min	265 CFM		230 VAC	2 Wire Leads	62 mm	179.3 Pa	0.72 in H2O	Permanent Split Capacitor Motor, Thermal Overload Protector (TOP)	0.17 A	160 mm	160 mm	Tubeaxial	Ball	3400 RPM	Polybutylene Terephthalate (PBT)
Mechatronics Fan Group UF16FC12-BTHR	Aluminum	2.8 lbs	1.3 kg	41 W	56 dB	70 °C	70 °C	-40 °C	-40 °C	7.42 m³/min	265 CFM	CE, cUL, TUV, UL	115 VAC	2 Terminals	62 mm	179.3 Pa	0.72 in H2O	Permanent Split Capacitor Motor, Thermal Overload Protector (TOP)	0.34 A	160 mm	160 mm	Tubeaxial	Ball	3400 RPM	Polybutylene Terephthalate (PBT)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 78.88

General part information

Fan Tubeaxial 230VAC Square - 160mm L x 160mm H Ball 265.0 CFM (7.42m³/min) 2 Terminals
