PJ-029-SMT-TR
ObsoleteCUI Devices
CONN PWR JACK 0.9X3.2MM SOLDER
Deep-Dive with AI
Search across all available documentation for this part.

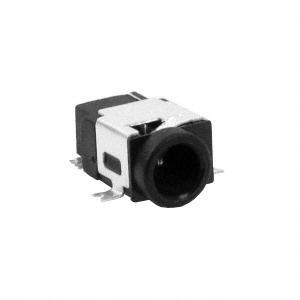

PJ-029-SMT-TR
ObsoleteCUI Devices
CONN PWR JACK 0.9X3.2MM SOLDER
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | PJ-029-SMT-TR |
|---|---|
| Actual Diameter [diameter] | 0.031 in, 0.132 in, 0.8 mm, 3.35 mm |
| Body Color | Black |
| Connector Type | Jack |
| Contact Material | Copper Alloy, Brass |
| Contact Material - Plating [custom] | Silver |
| Current Rating (Amps) | 2.5 A |
| Features | Board Guide |
| Gender | Male |
| Housing Material | Polyamide (PA6T), Nylon 6T |
| Industry Recognized Mating Diameter [diameter] | 0.035 in, 0.126 in |
| Industry Recognized Mating Diameter [diameter] | 3.2 mm, 0.9 mm |
| Internal Switch(s) | False |
| Material Flammability Rating | UL94 V-0 |
| Mating Length/Depth | 7 mm |
| Mating Length/Depth | 0.276 in |
| Mounting Type | Surface Mount, Right Angle |
| Number of Positions/Contacts [custom] | 3 |
| Number of Positions/Contacts [custom] | 3 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Shielding | Shielded |
| Termination | Solder |
| Voltage - Rated | 24 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
PJ-029 Series
Power Barrel Connector Jack 0.90mm ID (0.035"), 3.20mm OD (0.126") Surface Mount, Right Angle
