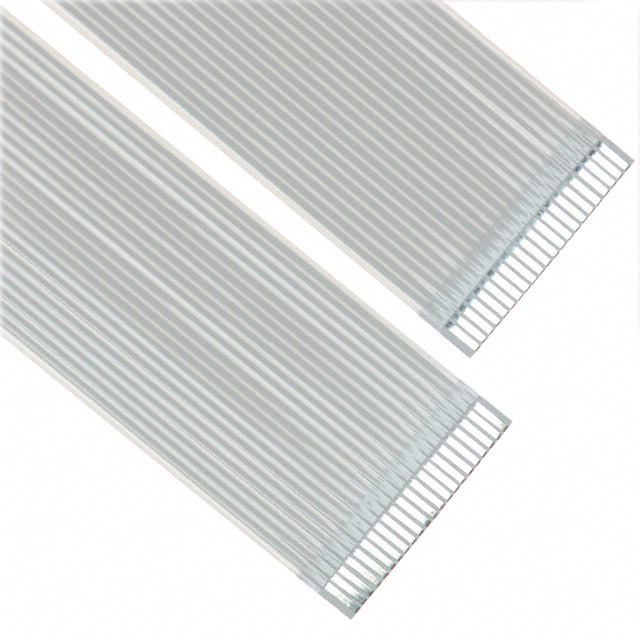

100R22-457B

Active

Parlex USA LLC

CABLE FFC/FPC 22POS 1MM 18"

Search across all available documentation for this part.

Active

Parlex USA LLC

CABLE FFC/FPC 22POS 1MM 18"

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	100R22-457B	100R22 Series

Cable Type	FPC, FFC	FPC, FFC
Length	18 "	2 - 18 "
Length	457.2 mm	50.8 - 457.2 mm
Length	-	5.984 - 12 in
Length	-	152 - 203 mm
Length - Exposed Ends [x]	0.14 in	0.14 in
Length - Exposed Ends [x]	3.56 mm	3.56 mm
Number of Conductors	22	22
Pitch [x]	0.039 in	0.039 in
Pitch [x]	1 mm	1 mm
Termination Style	Backers on Both Sides, Top on Both Sides	Backers on Both Sides, Top on Both Sides

CABLE FFC/FPC 22POS 1MM 10"

Part	Number of Conductors	Length	Length [x]	Termination Style	Pitch [x]	Pitch [x]	Cable Type	Length - Exposed Ends [x]	Length - Exposed Ends [x]	Length	Length [x]
Parlex USA LLC 100R22-254B	22	254 mm	10 in	Backers on Both Sides, Top on Both Sides	0.039 in	1 mm	FFC, FPC	0.14 in	3.56 mm
Parlex USA LLC 100R22-305B	22	304.8 mm	12 in	Backers on Both Sides, Top on Both Sides	0.039 in	1 mm	FFC, FPC	0.14 in	3.56 mm
Parlex USA LLC 100R22-457B	22	457.2 mm		Backers on Both Sides, Top on Both Sides	0.039 in	1 mm	FFC, FPC	0.14 in	3.56 mm	18 "
Parlex USA LLC 100R22-203B	22		7.992 in	Backers on Both Sides, Top on Both Sides	0.039 in	1 mm	FFC, FPC	0.14 in	3.56 mm		203 mm
Parlex USA LLC 100R22-152B	22		5.984 in	Backers on Both Sides, Top on Both Sides	0.039 in	1 mm	FFC, FPC	0.14 in	3.56 mm		152 mm
Parlex USA LLC 100R22-76B	22	76.2 mm		Backers on Both Sides, Top on Both Sides	0.039 in	1 mm	FFC, FPC	0.14 in	3.56 mm	3 in
Parlex USA LLC 100R22-51B	22	50.8 mm		Backers on Both Sides, Top on Both Sides	0.039 in	1 mm	FFC, FPC	0.14 in	3.56 mm	2 in
Parlex USA LLC 100R22-102B	22	101.6 mm		Backers on Both Sides, Top on Both Sides	0.039 in	1 mm	FFC, FPC	0.14 in	3.56 mm	4 in
Parlex USA LLC 100R22-127B	22	127 mm		Backers on Both Sides, Top on Both Sides	0.039 in	1 mm	FFC, FPC	0.14 in	3.56 mm	5 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	500	$ 4.07

General part information

22 Position FFC, FPC Cable 0.039" (1.00mm) 18.0" (457.2mm)
