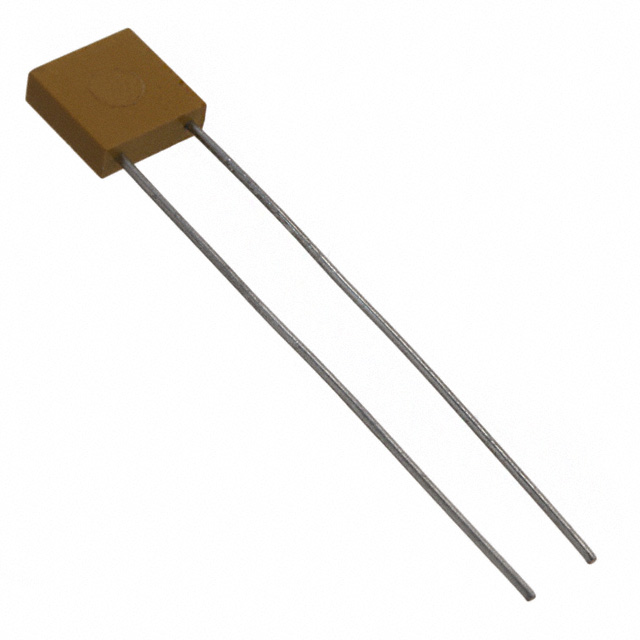

CK06BX472K
ActiveKEMET
CAP CER 4700PF 200V 10% RADIAL
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CK06BX472K
ActiveKEMET
CAP CER 4700PF 200V 10% RADIAL
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CK06BX472K |
|---|---|
| Applications | High Reliability |
| Capacitance | 4700 pF |
| Height - Seated (Max) [Max] | 0.3 in |
| Height - Seated (Max) [Max] | 7.62 mm |
| Lead Spacing | 5.08 mm |
| Lead Spacing | 0.2 in |
| Lead Style | Straight |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | Radial |
| Size / Dimension [x] | 0.29 in |
| Size / Dimension [x] | 7.37 mm |
| Size / Dimension [y] | 0.09 " |
| Size / Dimension [y] | 2.29 mm |
| Temperature Coefficient | BX |
| Tolerance | 10 % |
| Voltage - Rated | 200 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 1.23 | |
| 10 | $ 0.80 | |||
| 100 | $ 0.55 | |||
| 1000 | $ 0.46 | |||
| 2500 | $ 0.42 | |||
| 5000 | $ 0.42 | |||
Description
General part information
CK06BX Series
4700 pF ±10% 200V Ceramic Capacitor BX Radial
