M3BRK-2418R

Active

IDC CABLE - MSR24K/MC24M/MPR24K

Deep-Dive with AI

Search across all available documentation for this part.

Documents3302 Series 4600 Series Drawing +1

M3BRK-2418R

Active

IDC CABLE - MSR24K/MC24M/MPR24K

Deep-Dive with AI

Documents3302 Series 4600 Series Drawing +1

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 24.96
		10	$ 19.25
		25	$ 17.43
		50	$ 16.20
		100	$ 15.08
		250	$ 13.77
		500	$ 12.89

Description

General part information

M3BRK Series

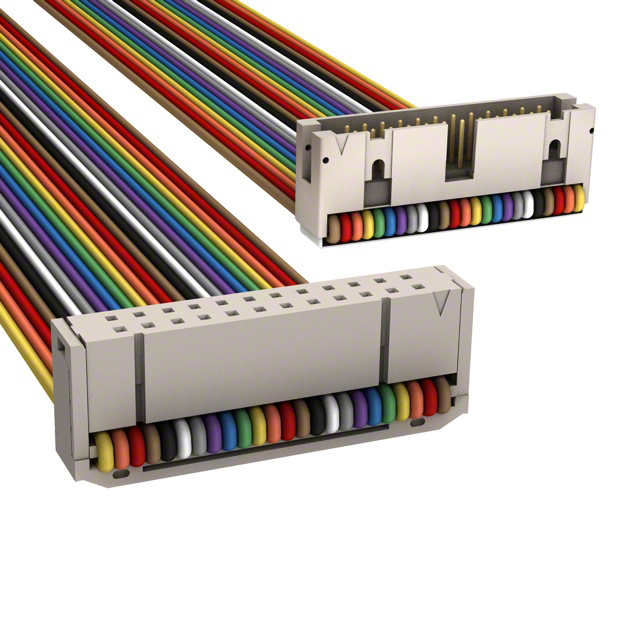

24 Position Cable Assembly Rectangular Socket to Plug 1.50' (457.20mm)

Documents

Technical documentation and resources

3302 Series

Datasheet

4600 Series Drawing

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	M3BRK-2418R	M3BRK Series

Cable Termination	IDC	IDC
Color	Ribbon, Multiple	Multiple, Twisted Pair (Flat), Ribbon, Multiple
Connector Type	Socket to Plug	Socket to Plug
Contact Finish	Gold	Gold
Contact Finish Thickness	0.76 Ám	0.76 Ám
Contact Finish Thickness	30 Áin	30 Áin
Features	Strain Relief (Socket), Strain Relief (Plug), Polarizing Key	Strain Relief (Socket), Strain Relief (Plug), Polarizing Key
Length	-	1.52 - 508 m
Length	-	1.67 - 5 '
Length	-	6 "
Length	-	0.5 '
Length [x]	457.2 mm	1.02 - 914.4 mm
Length [x]	1.5 ft	1.5 - 3.34 ft
Number of Positions	24	10 - 60
Number of Positions	-	16
Number of Rows	2	2
Pitch - Cable	0.05 "	0.05 "
Pitch - Cable	1.27 mm	1.27 mm
Pitch - Connector	0.1 in	0.1 in
Pitch - Connector	2.54 mm	2.54 mm
Shielding	Unshielded	Unshielded

M3BRK Series

IDC CABLE - MSR34K/MC34F/MPR34K

Part	Number of Positions	Pitch - Connector	Pitch - Connector	Contact Finish Thickness	Contact Finish Thickness	Number of Rows	Shielding	Pitch - Cable	Pitch - Cable	Cable Termination	Length	Length	Contact Finish	Features	Connector Type	Color	Length [x]	Length [x]	Length	Length	Number of Positions
3M M3BRK-3460K	34	0.1 in	2.54 mm	0.76 Ám	30 Áin	2	Unshielded	0.05 "	1.27 mm	IDC	1.52 m	5 '	Gold	Polarizing Key, Strain Relief (Plug), Strain Relief (Socket)	Socket to Plug	Multiple, Twisted Pair (Flat)
3M M3BRK-2418R	24	0.1 in	2.54 mm	0.76 Ám	30 Áin	2	Unshielded	0.05 "	1.27 mm	IDC			Gold	Polarizing Key, Strain Relief (Plug), Strain Relief (Socket)	Socket to Plug	Multiple, Ribbon	457.2 mm	1.5 ft
3M M3BRK-2018R	20	0.1 in	2.54 mm	0.76 Ám	30 Áin	2	Unshielded	0.05 "	1.27 mm	IDC			Gold	Polarizing Key, Strain Relief (Plug), Strain Relief (Socket)	Socket to Plug	Multiple, Ribbon	457.2 mm	1.5 ft
3M M3BRK-3436R	34	0.1 in	2.54 mm	0.76 Ám	30 Áin	2	Unshielded	0.05 "	1.27 mm	IDC			Gold	Polarizing Key, Strain Relief (Plug), Strain Relief (Socket)	Socket to Plug	Multiple, Ribbon	914.4 mm	3 ft
3M M3BRK-2036J	20	0.1 in	2.54 mm	0.76 Ám	30 Áin	2	Unshielded	0.05 "	1.27 mm	IDC			Gold	Polarizing Key, Strain Relief (Plug), Strain Relief (Socket)	Socket to Plug		914.4 mm	3 ft
3M M3BRK-2006R	20	0.1 in	2.54 mm	0.76 Ám	30 Áin	2	Unshielded	0.05 "	1.27 mm	IDC	152.4 mm		Gold	Polarizing Key, Strain Relief (Plug), Strain Relief (Socket)	Socket to Plug	Multiple, Ribbon			6 "	0.5 '
3M M3BRK-1606R		0.1 in	2.54 mm	0.76 Ám	30 Áin	2	Unshielded	0.05 "	1.27 mm	IDC	152.4 mm		Gold	Polarizing Key, Strain Relief (Plug), Strain Relief (Socket)	Socket to Plug	Multiple, Ribbon			6 "	0.5 '	16
3M M3BRK-2636J	26	0.1 in	2.54 mm	0.76 Ám	30 Áin	2	Unshielded	0.05 "	1.27 mm	IDC			Gold	Polarizing Key, Strain Relief (Plug), Strain Relief (Socket)	Socket to Plug		914.4 mm	3 ft
3M M3BRK-2640K	26	0.1 in	2.54 mm	0.76 Ám	30 Áin	2	Unshielded	0.05 "	1.27 mm	IDC			Gold	Polarizing Key, Strain Relief (Plug), Strain Relief (Socket)	Socket to Plug	Multiple, Twisted Pair (Flat)	1.02 m	3.34 ft
3M M3BRK-1618R		0.1 in	2.54 mm	0.76 Ám	30 Áin	2	Unshielded	0.05 "	1.27 mm	IDC			Gold	Polarizing Key, Strain Relief (Plug), Strain Relief (Socket)	Socket to Plug	Multiple, Ribbon	457.2 mm	1.5 ft			16
