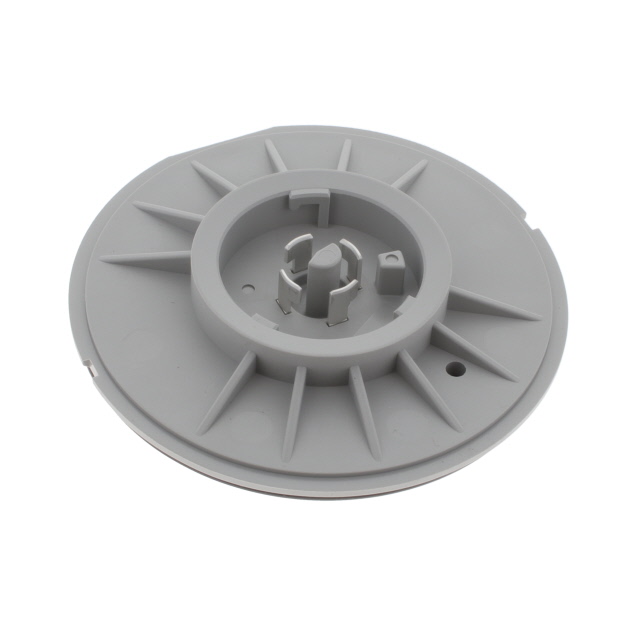

1-2343404-1
ActiveTE Connectivity Raychem Cable Protection
LED LIGHTING MOUNTING ACCESSORIES LUMAWISE ENDURANCE S 80MM,KEY,VENTED BASE
Deep-Dive with AI
Search across all available documentation for this part.
1-2343404-1
ActiveTE Connectivity Raychem Cable Protection
LED LIGHTING MOUNTING ACCESSORIES LUMAWISE ENDURANCE S 80MM,KEY,VENTED BASE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 1-2343404-1 |
|---|---|
| Connector Type | Base - Panel Mount |
| Contact Finish | Tin |
| Contact Material | Brass |
| Current Rating (Amps) | 5 A |
| Housing Color | Gray |
| Housing Material | Polybutylene Terephthalate (PBT) |
| Mounting Type | PCB |
| Number of Positions | 4 |
| Operating Temperature [Max] | 90 °C |
| Operating Temperature [Min] | -40 °C |
| Style | Board to Cable/Wire |
| Voltage Rating | 250 VDC |
LUMAWISE Endurance S Series
LED Lighting Mounting Accessories LUMAWISE Endurance S 40mm, Keyed Base
| Part | Ingress Protection | Number of Positions | Housing Material | Connector Type | Contact Finish | Operating Temperature [Max] | Operating Temperature [Min] | Housing Color | Wire Gauge [Min] | Wire Gauge [Max] | Style | Current Rating (Amps) | Contact Material | For Use With/Related Products | Accessory Type | Voltage Rating | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity Raychem Cable Protection | |||||||||||||||||
TE Connectivity Raychem Cable Protection | |||||||||||||||||
TE Connectivity Raychem Cable Protection | |||||||||||||||||
TE Connectivity Raychem Cable Protection | IP66 | 4 | Polybutylene Terephthalate (PBT) | Receptacle | Tin | 90 °C | -40 °C | Black | 17.5 AWG | 20 AWG | Board to Cable/Wire | 1.5 A | Copper Alloy | ||||
TE Connectivity Raychem Cable Protection | LUMAWISE Endurance S Domes | Lens | |||||||||||||||
TE Connectivity Raychem Cable Protection | LUMAWISE Endurance S Series | Lens | |||||||||||||||
TE Connectivity Raychem Cable Protection | LUMAWISE Endurance S Series | Lens | |||||||||||||||
TE Connectivity Raychem Cable Protection | |||||||||||||||||
TE Connectivity Raychem Cable Protection | LUMAWISE Endurance S Series | Lens | |||||||||||||||
TE Connectivity Raychem Cable Protection | 4 | Polybutylene Terephthalate (PBT) | Base - Panel Mount | Tin | 90 °C | -40 °C | Gray | Board to Cable/Wire | 5 A | Brass | 250 VDC | PCB |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
LUMAWISE Endurance S Series
LED Lighting Mounting Accessories LUMAWISE Endurance S 40mm, Keyed Base
Documents
Technical documentation and resources
