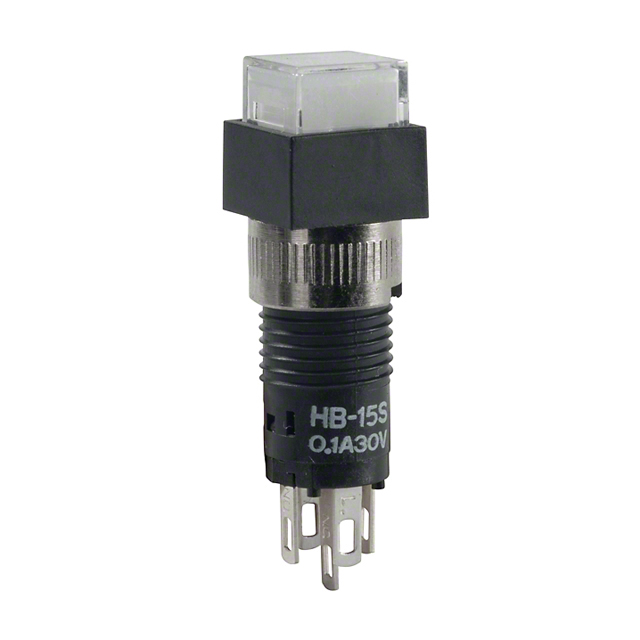

HB15SKW01-6B-JB

Active

NKK Switches

SWITCH PUSH SPDT 0.1A 30V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

HB15SKW01-6B-JB

Active

NKK Switches

SWITCH PUSH SPDT 0.1A 30V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	HB15SKW01-6B-JB

Actuator Marking	No Marking
Actuator Type	Button, Square
Circuit	SPDT
Color - Actuator/Cap	Clear
Current Rating (Amps)	100 mA
Electrical Life	50000 Cycles
Illumination Type, Color	White, LED
Illumination Voltage (Nominal)	3.3 VDC
Mechanical Life	100000 Cycles
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	50 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	8 mm
Switch Function	On-Mom
Termination Style	Solder Lug
Type	Illuminated, Standard
Voltage Rating - AC	30 V
Voltage Rating - DC	30 V

HB15SKW Series

Part	Actuator Type	Termination Style	Voltage Rating - DC	Operating Temperature [Max]	Operating Temperature [Min]	Type	Illumination Type, Color	Mechanical Life	Mounting Type	Color - Actuator/Cap	Circuit	Switch Function	Actuator Marking	Voltage Rating - AC	Current Rating (Amps)	Illumination Voltage (Nominal)	Panel Cutout Dimensions [diameter]	Electrical Life
NKK Switches HB15SKW01-6B-JB	Button Square	Solder Lug	30 V	50 °C	-25 °C	Illuminated Standard	LED White	100000 Cycles	Panel Mount Front	Clear	SPDT	On-Mom	No Marking	30 V	100 mA	3.3 VDC	8 mm	50000 Cycles
NKK Switches HB15SKW01-5C-CB	Button Square	Solder Lug	30 V	50 °C	-25 °C	Illuminated Standard	LED Red	100000 Cycles	Panel Mount Front	Red	SPDT	On-Mom	No Marking	30 V	100 mA	2.1 VDC	8 mm	50000 Cycles
NKK Switches HB15SKW01/U	Button Square	Solder Lug	30 V	70 °C	-25 °C	Standard		100000 Cycles	Panel Mount Front		SPDT	On-Mom	No Marking	30 V	100 mA		8 mm	50000 Cycles
NKK Switches HB15SKW01-5D-DB	Button Square	Solder Lug	30 V	50 °C	-25 °C	Illuminated Standard	Amber LED	100000 Cycles	Panel Mount Front	Amber	SPDT	On-Mom	No Marking	30 V	100 mA	2.05 VDC	8 mm	50000 Cycles
NKK Switches HB15SKW01-5C-CB/U	Button Square	Solder Lug	30 V	50 °C	-25 °C	Illuminated Standard	LED Red	100000 Cycles	Panel Mount Front		SPDT	On-Mom	No Marking	30 V	100 mA	2.1 VDC	8 mm	50000 Cycles
NKK Switches HB15SKW01-6F-JB	Button Square	Solder Lug	30 V	50 °C	-25 °C	Illuminated Standard	Green LED	100000 Cycles	Panel Mount Front	Clear	SPDT	On-Mom	No Marking	30 V	100 mA	3.5 VDC	8 mm	50000 Cycles
NKK Switches HB15SKW01-E	Button Square	Solder Lug	30 V	70 °C	-25 °C	Standard		100000 Cycles	Panel Mount Front	Yellow	SPDT	On-Mom	No Marking	30 V	100 mA		8 mm	50000 Cycles
NKK Switches HB15SKW01-5F-AB	Button Square	Solder Lug	30 V	50 °C	-25 °C	Illuminated Standard	Green LED	100000 Cycles	Panel Mount Front	Black	SPDT	On-Mom	No Marking	30 V	100 mA	2.1 VDC	8 mm	50000 Cycles
NKK Switches HB15SKW01-5F-JB	Button Square	Solder Lug	30 V	50 °C	-25 °C	Illuminated Standard	Green LED	100000 Cycles	Panel Mount Front	Clear	SPDT	On-Mom	No Marking	30 V	100 mA	2.1 VDC	8 mm	50000 Cycles
NKK Switches HB15SKW01-G	Button Square	Solder Lug	30 V	70 °C	-25 °C	Standard		100000 Cycles	Panel Mount Front	Blue	SPDT	On-Mom	No Marking	30 V	100 mA		8 mm	50000 Cycles

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 20.19
		10	$ 18.34
		25	$ 17.51
		40	$ 16.59
		80	$ 15.97
		230	$ 14.94
		440	$ 12.75
Newark	Each	1	$ 39.63
		5	$ 37.64
		10	$ 34.89
		25	$ 31.83
		50	$ 27.54
		100	$ 25.71
		250	$ 23.41

Description

General part information

HB15SKW Series

Pushbutton Switch SPDT Standard, Illuminated Panel Mount, Front
