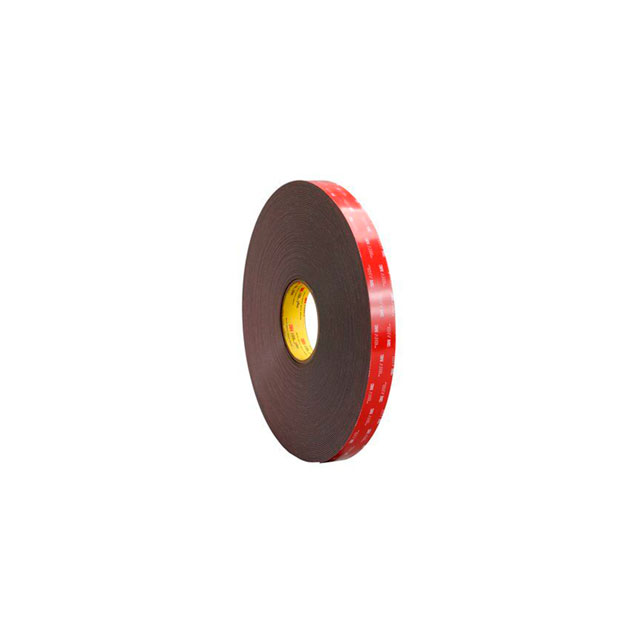

4979F-1-5

Active

3M (TC)

TAPE DBL SIDED BLACK 1"X5YDS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDate Code Decipher Datasheet

4979F-1-5

Active

3M (TC)

TAPE DBL SIDED BLACK 1"X5YDS

Deep-Dive with AI

DocumentsDate Code Decipher Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	4979F-1-5	1-5 Series

Adhesive	Acrylic	Rubber, Acrylic
Backing, Carrier	-	Glass Cloth
Color	Black	White, Black
Length	4.6 m	4.6 m
Length	15 ft	15 ft
Length	5 yd	5 yd
Shelf Life	24 Months	24 - 60 Months
Shelf Life Start	Date of Shipment	Date of Manufacture, Date of Shipment
Storage/Refrigeration Temperature [Max]	100 °F, 38 °C	27 - 100 °F
Storage/Refrigeration Temperature [Min]	40 °F, 4 °C	4 - 60 °C
Tape Type	Double Coated, Double Sided	Electrical, Double Coated, Double Sided, Sealing
Temperature Range	93 °C	93 °C
Temperature Range	200 °F	200 °F
Temperature Range	-	-7 - 20 °C
Temperature Range	-	77 - 170 °C
Temperature Range	-	0 °C
Temperature Range	-	150 °C
Thickness	1.575 mm	0.241 - 1.575 mm
Thickness	0.062 in	0.0095 - 0.062 in
Thickness	62 mils	9.5 - 62 mils
Thickness - Adhesive	-	2 - 40 mils
Thickness - Adhesive	-	0.051 - 1.016 mm
Thickness - Adhesive	-	0.002 "
Thickness - Adhesive	-	0.04 in
Thickness - Adhesive [custom]	1.448 mm	1.448 mm
Thickness - Adhesive [custom]	57 mils	57 mils
Thickness - Adhesive [custom]	0.057 "	0.057 "
Thickness - Backing, Carrier	-	0.191 mm
Thickness - Backing, Carrier	-	7.5 mils
Thickness - Backing, Carrier	-	0.0075 in
Thickness - Backing, Carrier [custom]	0.005 "	0.005 "
Thickness - Backing, Carrier [custom]	5 mils	5 mils
Thickness - Backing, Carrier [custom]	0.127 mm	0.127 mm
Usage	-	Sealing, Splicing
Width [x]	25.4 mm	25.4 mm
Width [x]	1 in	1 in

1-5 Series

TAPE ELECT WHITE 1"X 5YDS 2/PACK

Part	Backing, Carrier	Shelf Life	Shelf Life Start	Tape Type	Thickness - Backing, Carrier [custom]	Thickness - Backing, Carrier [custom]	Thickness - Backing, Carrier [custom]	Length	Length	Length	Width [x]	Width [x]	Adhesive	Thickness - Adhesive	Thickness - Adhesive	Thickness - Adhesive [x]	Color	Temperature Range [Min]	Temperature Range [Max]	Temperature Range [Min]	Temperature Range [Max]	Storage/Refrigeration Temperature [Max]	Storage/Refrigeration Temperature [Min]	Thickness	Thickness	Thickness	Temperature Range	Temperature Range	Thickness - Adhesive [custom]	Thickness - Adhesive [custom]	Thickness - Adhesive [custom]	Thickness - Adhesive	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Usage
3M (TC) 27-1-5	Glass Cloth	60 Months	Date of Manufacture	Electrical	0.005 "	5 mils	0.127 mm	4.6 m	15 ft	5 yd	25.4 mm	1 in	Rubber	2 mils	0.051 mm	0.002 "	White	0 °C	150 °C	0 °C	150 °C	27 °C, 80 °F	10 °C
3M (TC) 4979F-1-5		24 Months	Date of Shipment	Double Coated, Double Sided	0.005 "	5 mils	0.127 mm	4.6 m	15 ft	5 yd	25.4 mm	1 in	Acrylic				Black					38 °C, 100 °F	4 °C, 40 °F	1.575 mm	0.062 in	62 mils	93 °C	200 °F	1.448 mm	57 mils	0.057 "
3M (TC) 4947F-1-5		24 Months	Date of Shipment	Double Coated, Double Sided	0.005 "	5 mils	0.127 mm	4.6 m	15 ft	5 yd	25.4 mm	1 in	Acrylic	40 mils	1.016 mm		Black					38 °C, 100 °F	4 °C, 40 °F	1.143 mm	0.045 in	45 mils	93 °C	200 °F				0.04 in
3M (TC) 481-1-5		24 Months	Date of Manufacture	Sealing				4.6 m	15 ft	5 yd	25.4 mm	1 in	Rubber	2 mils	0.051 mm	0.002 "	Black	-7 °C, 20 °F	77 °C, 170 °F			27 °C, 80 °F	16 °C, 60 °F	0.241 mm	0.0095 in	9.5 mils							0.191 mm	7.5 mils	0.0075 in	Sealing, Splicing

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 55.82
		10	$ 52.54
		25	$ 49.25
		50	$ 45.97
		100	$ 43.67

Description

General part information

1-5 Series

Double Coated, Double Sided Tape Acrylic Adhesive Black 1.00" (25.40mm) X 15' (4.6m) 5 yds

Documents

Technical documentation and resources
