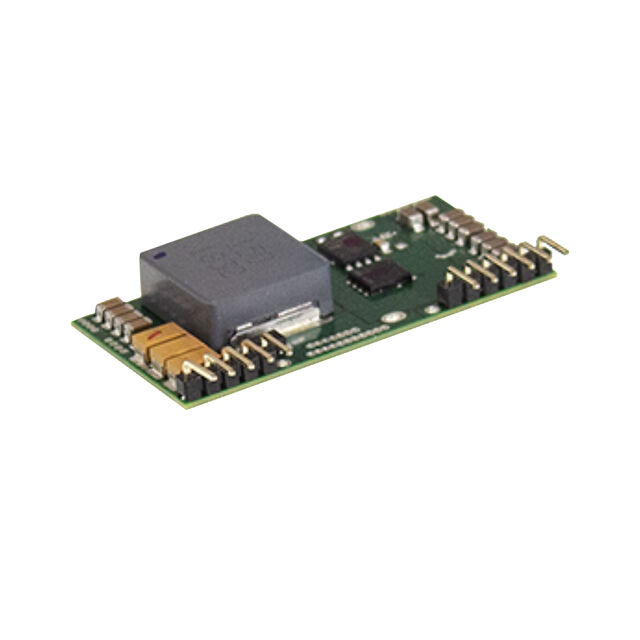

NID65-5
ActiveMEAN WELL USA Inc.
DC DC CONVERTER 5V 33W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
NID65-5
ActiveMEAN WELL USA Inc.
DC DC CONVERTER 5V 33W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | NID65-5 |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | CE, EAC |
| Current - Output (Max) [Max] | 6.5 A |
| Efficiency | 93 % |
| Features | OVP, OCP, Remote On/Off, SCP |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -30 °C |
| Package / Case | 11-SIP Module |
| Power (Watts) | 33 W |
| Size / Dimension | 26 mm, 50.8 mm, 11 mm |
| Size / Dimension [x] | 2 in |
| Size / Dimension [y] | 0.43 in |
| Size / Dimension [z] | 1.02 in |
| Type | Non-Isolated PoL Module |
| Voltage - Input (Max) [Max] | 53 V |
| Voltage - Input (Min) [Min] | 10.5 V |
| Voltage - Output 1 | 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 13.86 | |
| 5 | $ 13.06 | |||
| 10 | $ 12.74 | |||
Description
General part information
NID65 Series
Non-Isolated PoL Module DC DC Converter 1 Output 5V 6.5A 10.5V - 53V Input
