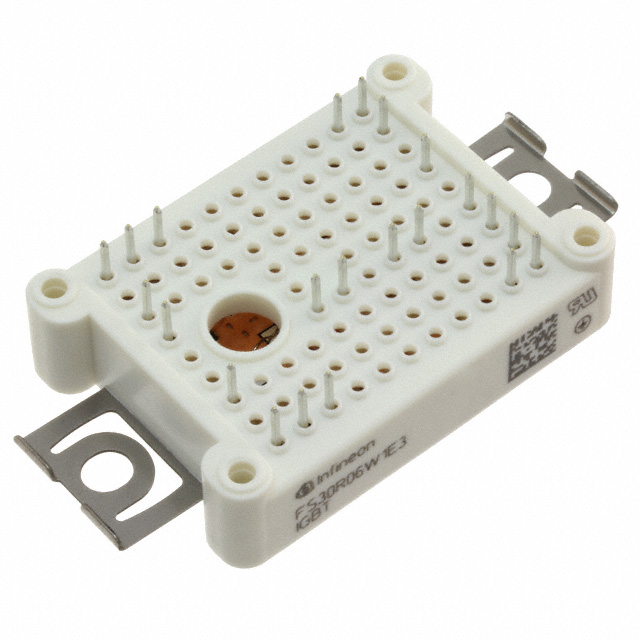

FZ30R07W1E3B31ABOMA1

Obsolete

Infineon Technologies

IGBT MODULE

Search across all available documentation for this part.

Obsolete

Infineon Technologies

IGBT MODULE

Technical Specifications

Parameters and characteristics for this part

Specification	FZ30R07W1E3B31ABOMA1

Current - Collector (Ic) (Max) [Max]	45 A
Current - Collector Cutoff (Max) [Max]	50 µA
IGBT Type	Trench Field Stop
Input	Standard
Input Capacitance (Cies) @ Vce	1.65 nF
Mounting Type	Chassis Mount
NTC Thermistor	True
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-40 °C
Package / Case	Module
Power - Max [Max]	150 W
Supplier Device Package	Module
Vce(on) (Max) @ Vge, Ic	2 V
Voltage - Collector Emitter Breakdown (Max)	650 V

Part	Input	NTC Thermistor	Mounting Type	Package / Case	Current - Collector (Ic) (Max) [Max]	Current - Collector Cutoff (Max) [Max]	Power - Max [Max]	IGBT Type	Vce(on) (Max) @ Vge, Ic	Supplier Device Package	Input Capacitance (Cies) @ Vce	Voltage - Collector Emitter Breakdown (Max)	Operating Temperature [Max]	Operating Temperature [Min]
Infineon Technologies FZ30R07W1E3B31ABOMA1	Standard		Chassis Mount	Module	45 A	50 µA	150 W	Trench Field Stop	2 V	Module	1.65 nF	650 V	150 °C	-40 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

IGBT Module Trench Field Stop Single Switch 650 V 45 A 150 W Chassis Mount Module
