345-134-555-204
ActiveEDAC Inc.

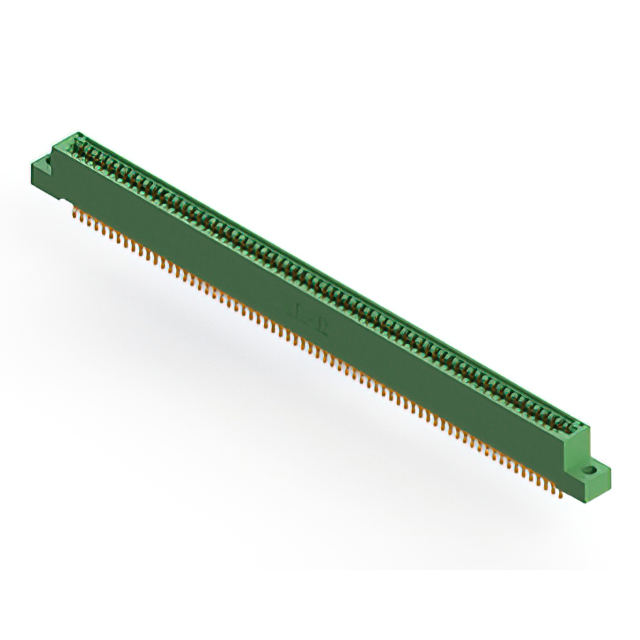

CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 134 CONTACTS, PANEL MOUNT, STRAIGHT
Deep-Dive with AI
Search across all available documentation for this part.
345-134-555-204
ActiveEDAC Inc.
CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 134 CONTACTS, PANEL MOUNT, STRAIGHT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 345-134-555-204 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Features | Card Extender |
| Flange Feature | Flush Mount, Top Opening, Unthreaded |
| Flange Feature [diameter] | 3.96 mm |
| Flange Feature [diameter] | 0.156 in |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Board Edge, Straddle Mount |
| Number of Positions | 134 |
| Number of Positions/Bay/Row [custom] | 67 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Dual |
| Termination | Solder Eyelet(s) |
| Termination Rows | 2 |
345-134 Series
...
| Part | Termination Rows | Number of Positions/Bay/Row [custom] | Contact Finish Thickness | Contact Finish Thickness | Color | Card Type | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Pitch [x] | Pitch [x] | Read Out | Material - Insulation | Termination | Gender | Contact Finish | Contact Type | Contact Material | Flange Feature | Flange Feature | Flange Feature | Features | Number of Positions | Number of Rows | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 2 | 67 | 10 Áin | 0.25 Ám | Green | Non Specified - Dual Edge | Board Edge Straddle Mount | -40 °C | 105 ░C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2.54 mm | 0.1 in | Dual | Polyester Thermoplastic | Solder | Female | Gold | Cantilever | Copper Alloy | Side Mount Opening Unthreaded | 3.25 mm | 0.128 in | Card Extender | 134 | 2 | ||
EDAC Inc. | 2 | 67 | 10 Áin | 0.25 Ám | Green | Non Specified - Dual Edge | Board Edge Straddle Mount | -40 °C | 105 ░C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2.54 mm | 0.1 in | Dual | Polyester Thermoplastic | Solder Eyelet(s) | Female | Gold | Cantilever | Copper Alloy | Flush Mount Top Opening Unthreaded | Card Extender | 134 | 2 | 3.96 mm | 0.156 in | ||
EDAC Inc. | 2 | 67 | 10 Áin | 0.25 Ám | Green | Non Specified - Dual Edge | Through Hole Right Angle | -40 °C | 105 ░C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2.54 mm | 0.1 in | Dual | Polyester Thermoplastic | Solder | Female | Gold | Cantilever | Copper Alloy | 4-40 Flush Mount Threaded Insert Top Opening | Card Guides | 134 | 2 | ||||
EDAC Inc. | 2 | 67 | 10 Áin | 0.25 Ám | Green | Non Specified - Dual Edge | Through Hole | -40 °C | 105 ░C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2.54 mm | 0.1 in | Dual | Polyester Thermoplastic | Solder | Female | Gold | Cantilever | Copper Alloy | Floating Bobbin Flush Mount | 134 | 2 | 2.95 mm | 0.116 in | |||
EDAC Inc. | 2 | 67 | 10 Áin | 0.25 Ám | Green | Non Specified - Dual Edge | Through Hole | -40 °C | 105 ░C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2.54 mm | 0.1 in | Dual | Polyester Thermoplastic | Solder | Female | Gold | Cantilever | Copper Alloy | Flush Mount M3 Threaded Insert Top Opening | 134 | 2 | |||||
EDAC Inc. | 2 | 67 | 10 Áin | 0.25 Ám | Green | Non Specified - Dual Edge | Through Hole Right Angle | -40 °C | 105 ░C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2.54 mm | 0.1 in | Dual | Polyester Thermoplastic | Solder | Female | Gold | Cantilever | Copper Alloy | Top Mount Opening Unthreaded | 134 | 2 | 3.96 mm | 0.156 in | |||
EDAC Inc. | 2 | 67 | 10 Áin | 0.25 Ám | Green | Non Specified - Dual Edge | Through Hole | -40 °C | 105 ░C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2.54 mm | 0.1 in | Dual | Polyester Thermoplastic | Wire Wrap | Female | Gold | Cantilever | Copper Alloy | Flush Mount Top Opening Unthreaded | 134 | 2 | 3.25 mm | 0.128 " | |||
EDAC Inc. | 2 | 67 | 10 Áin | 0.25 Ám | Green | Non Specified - Dual Edge | Board Edge Straddle Mount | -40 °C | 105 ░C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2.54 mm | 0.1 in | Dual | Polyester Thermoplastic | Solder | Female | Gold | Cantilever | Copper Alloy | Flush Mount M3 Threaded Insert Top Opening | Card Extender | 134 | 2 | ||||
EDAC Inc. | 2 | 67 | 10 Áin | 0.25 Ám | Green | Non Specified - Dual Edge | Through Hole | -40 °C | 105 ░C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2.54 mm | 0.1 in | Dual | Polyester Thermoplastic | Wire Wrap | Female | Gold | Cantilever | Copper Alloy | Flush Mount Side Opening Unthreaded | 134 | 2 | 3.25 mm | 0.128 " | |||
EDAC Inc. | 2 | 67 | 10 Áin | 0.25 Ám | Green | Non Specified - Dual Edge | Board Edge Straddle Mount | -40 °C | 105 ░C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2.54 mm | 0.1 in | Dual | Polyester Thermoplastic | Solder | Female | Gold | Cantilever | Copper Alloy | Top Mount Opening Unthreaded | Card Extender | 134 | 2 | 3.96 mm | 0.156 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
345-134 Series
134 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Green
