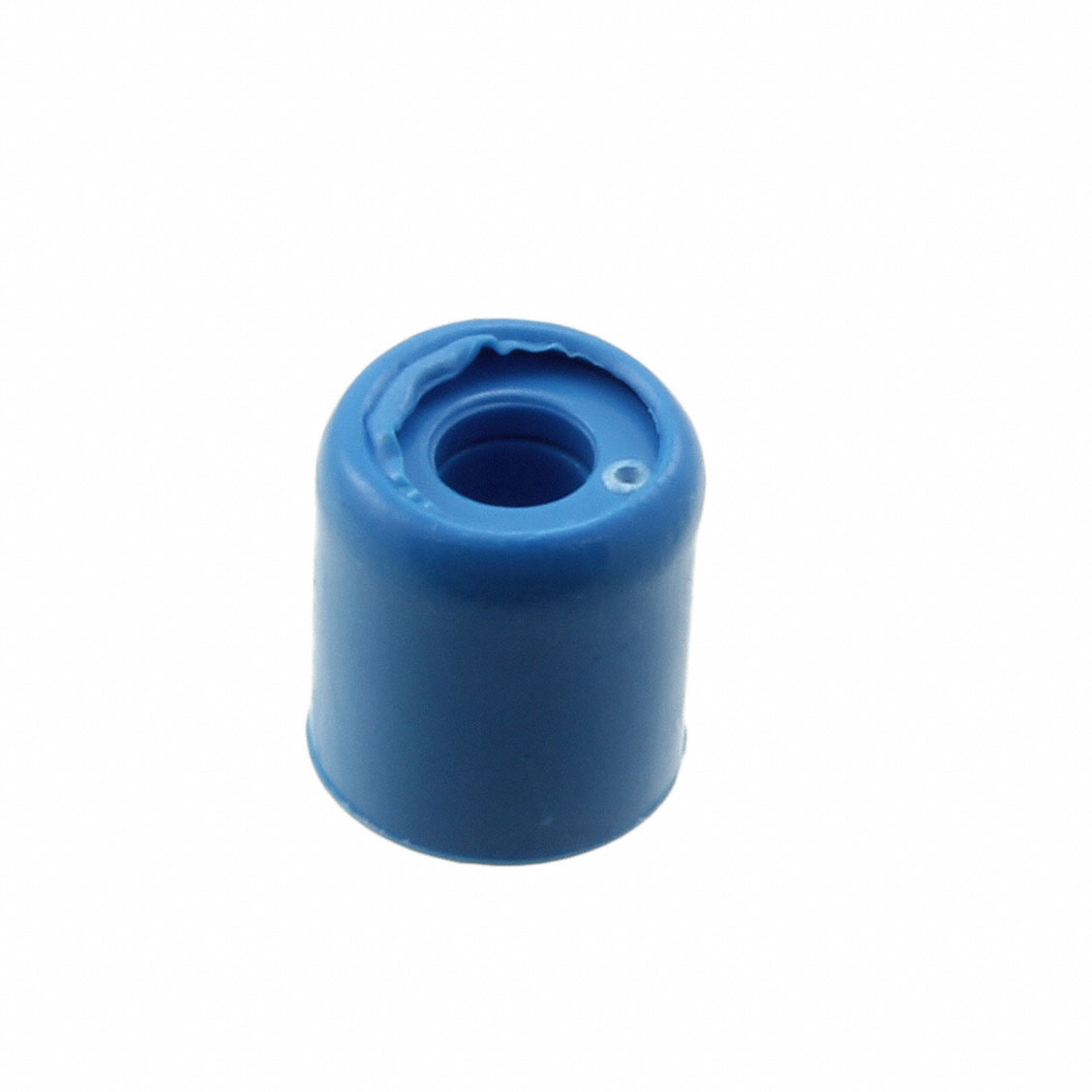

AB3X2X3W
ActiveToshiba Semiconductor and Storage
FERRITE CORE SOLID 1.5MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
AB3X2X3W
ActiveToshiba Semiconductor and Storage
FERRITE CORE SOLID 1.5MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | AB3X2X3W |
|---|---|
| Inner Dimension [diameter] | 0.059 in |
| Inner Dimension [diameter] | 1.5 mm |
| Length | 4.5 mm |
| Length [x] | 0.177 in |
| Mounting Type | Free Hanging |
| Outer Dimension [diameter] | 4 mm |
| Outer Dimension [diameter] | 0.157 in |
| Type | Round |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 0.66 | |
| 10 | $ 0.54 | |||
| 25 | $ 0.50 | |||
| 50 | $ 0.47 | |||
| 100 | $ 0.44 | |||
| 250 | $ 0.41 | |||
| 500 | $ 0.38 | |||
| 1000 | $ 0.36 | |||
| 5000 | $ 0.31 | |||
Description
General part information
AB3X2X3 Series
Solid Free Hanging Ferrite Core ID 0.059" Dia (1.50mm) OD 0.157" Dia (4.00mm) Length 0.177" (4.50mm)
