ST3DV520QTR

Obsolete

STMicroelectronics

IC SWITCH SPDT X 4 7.5OHM 56QFN

Search across all available documentation for this part.

Obsolete

STMicroelectronics

IC SWITCH SPDT X 4 7.5OHM 56QFN

Technical Specifications

Parameters and characteristics for this part

Specification	ST3DV520QTR

-3db Bandwidth	450 MHz
Channel Capacitance (CS(off), CD(off)) [custom]	6 pF
Channel Capacitance (CS(off), CD(off)) [custom]	6 pF
Channel-to-Channel Matching (ΔRon)	500 mOhm
Crosstalk	-45 dB
Current - Leakage (IS(off)) (Max)	5 µA
Mounting Type	Surface Mount
Multiplexer/Demultiplexer Circuit	2:1
Number of Circuits	4
On-State Resistance (Max) [Max]	7.5 Ohms
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C

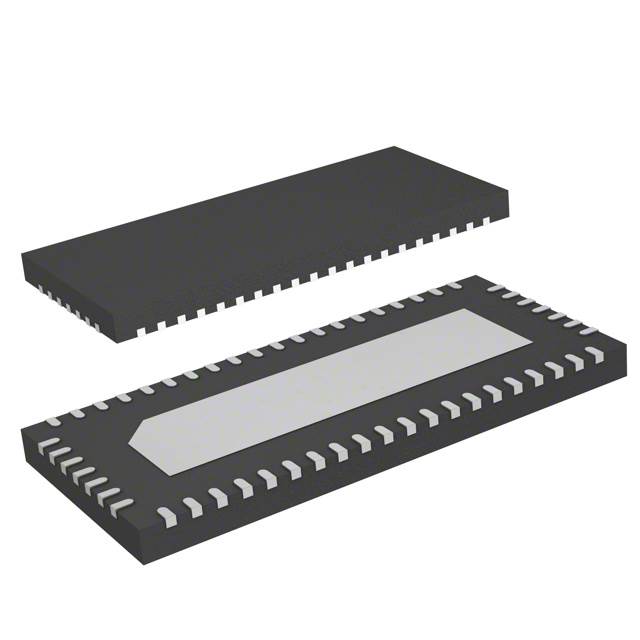

Package / Case	56-WFQFN Exposed Pad
Supplier Device Package	56-QFN (11x5)
Switch Circuit	SPDT
Switch Time (Ton, Toff) (Max) [custom]	8.5 ns
Switch Time (Ton, Toff) (Max) [custom]	9 ns
Voltage - Supply, Single (V+) [Max]	3.6 V
Voltage - Supply, Single (V+) [Min]	3 V

Part	Switch Circuit	Number of Channels [custom]	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	On-State Resistance (Max) [Max]	Applications	-3db Bandwidth	Features	Mounting Type	Package / Case	Multiplexer/Demultiplexer Circuit	Voltage - Supply, Single (V+) [Max]	Voltage - Supply, Single (V+) [Min]	Channel Capacitance (CS(off), CD(off)) [custom]	Channel Capacitance (CS(off), CD(off)) [custom]	Crosstalk	Operating Temperature [Max]	Operating Temperature [Min]	Switch Time (Ton, Toff) (Max) [custom]	Switch Time (Ton, Toff) (Max) [custom]	Number of Circuits	Channel-to-Channel Matching (ΔRon)	Current - Leakage (IS(off)) (Max)
STMicroelectronics ST3DV520AQTR	SPDT	10	56-QFN (11x5)	85 °C	-40 °C	6.5 Ohm	Video	600 MHz	Bi-Directional	Surface Mount	56-WFQFN Exposed Pad	2:1	3.6 V	3 V
STMicroelectronics ST3DV520QTR	SPDT		56-QFN (11x5)			7.5 Ohms		450 MHz		Surface Mount	56-WFQFN Exposed Pad	2:1	3.6 V	3 V	6 pF	6 pF	-45 dB	125 °C	-55 °C	8.5 ns	9 ns	4	500 mOhm	5 µA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

4 Circuit IC Switch 2:1 7.5Ohm 56-QFN (11x5)
