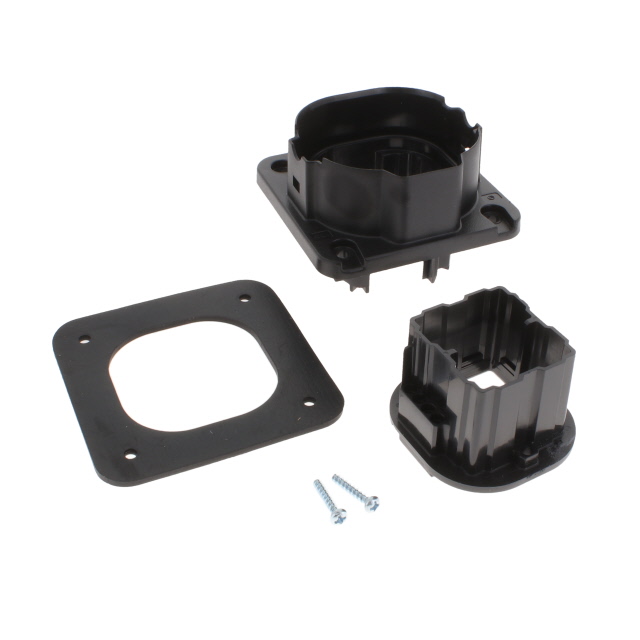

SK2-076C04

Active

Anderson Power Products, Inc.

HIGH POWER CONNECTOR, SPEC PAK SERIES, RECEPTACLE, 600 V, 80 A, PANEL MOUNT, SCREW

Search across all available documentation for this part.

Active

Anderson Power Products, Inc.

HIGH POWER CONNECTOR, SPEC PAK SERIES, RECEPTACLE, 600 V, 80 A, PANEL MOUNT, SCREW

Technical Specifications

Parameters and characteristics for this part

HIGH POWER CONNECTOR, SPEC PAK SERIES, RECEPTACLE, 600 V, 80 A, PANEL MOUNT, SCREW

Part	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Current Rating (Amps)	Number of Rows	Wire Gauge [Max]	Wire Gauge [Min]	Voltage Rating	Connector Type	Termination
Anderson Power Products, Inc. SK2-076C04	Spring Retention	-40 °C	105 ░C	4	40 A	2	24 AWG	6 AWG	600 V	Non-Gendered	Crimp

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 Position Non-Gendered Connector Crimp Panel Mount
