10-2513.1145
ActiveEAO

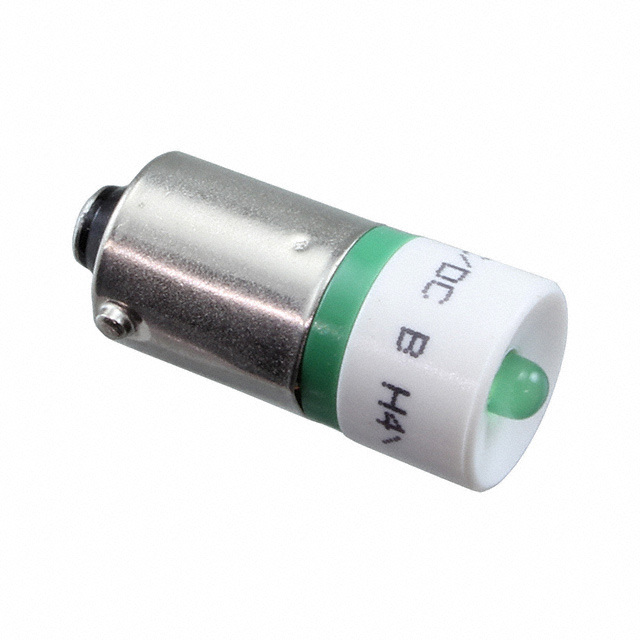

LAMP, T3 1/4, GREEN, 28V, 10 SERIES
Deep-Dive with AI
Search across all available documentation for this part.
10-2513.1145
ActiveEAO
LAMP, T3 1/4, GREEN, 28V, 10 SERIES
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 10-2513.1145 | 10-2513 Series |
|---|---|---|
| (Select First, Then Apply Filters) Compatible Series | - | 10 |
| (Select First, Then Apply Filters) Compatible Series | - | EAO |
| Applications | - | General Purpose Lighting |
| Base Type | - | Miniature Bayonet (BA9S) |
| Can Replace Lamps | - | Multiple Miniature Bayonet Lamps |
| Color | - | Blue, Green |
| Configuration | - | Single |
| Millicandela Rating | - | 590 mcd |
| null | - | |
| Size / Dimension | - | 0.394 in |
| Size / Dimension | - | 1.142 inches |
| Size / Dimension | - | 10 mm |
| Size / Dimension | - | 29 mm |
| Type | - | LED |
| Voltage | - | 28 V |
| Voltage - Forward (Vf) (Typ) | - | 28 V |
| Wavelength | - | 470 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 15.63 | |
| 10 | $ 13.49 | |||
| 25 | $ 12.72 | |||
| 50 | $ 12.16 | |||
| 100 | $ 11.63 | |||
| 250 | $ 10.96 | |||
| 500 | $ 10.48 | |||
10-2513 Series
SINGLE CHIP LED/ T-3 1/4/(BA9S) 28 VAC-DC/ BLUE
| Part | Size / Dimension [diameter] | Size / Dimension [x] | Size / Dimension [diameter] | Size / Dimension [x] | Color | Applications | Configuration | Voltage - Forward (Vf) (Typ) | Millicandela Rating | Can Replace Lamps | Base Type | Wavelength | (Select First, Then Apply Filters) Compatible Series | (Select First, Then Apply Filters) Compatible Series | Type | Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EAO 10-2513.1146 | ||||||||||||||||
EAO 10-2513.1146 | 0.394 in | 1.142 inches | 10 mm | 29 mm | Blue | General Purpose Lighting | Single | 28 V | 590 mcd | Multiple Miniature Bayonet Lamps | Miniature Bayonet (BA9S) | 470 nm | ||||
EAO 10-2513.1145 | Green | 10 | EAO | LED | 28 V | |||||||||||
EAO 10-2513.1145 |
Description
General part information
10-2513 Series
10-2513.1145 is a single LED with 1050mcd luminous intensity and 525nm dominant wavelength.
