120521-1
ActiveTE Connectivity AMP Connectors

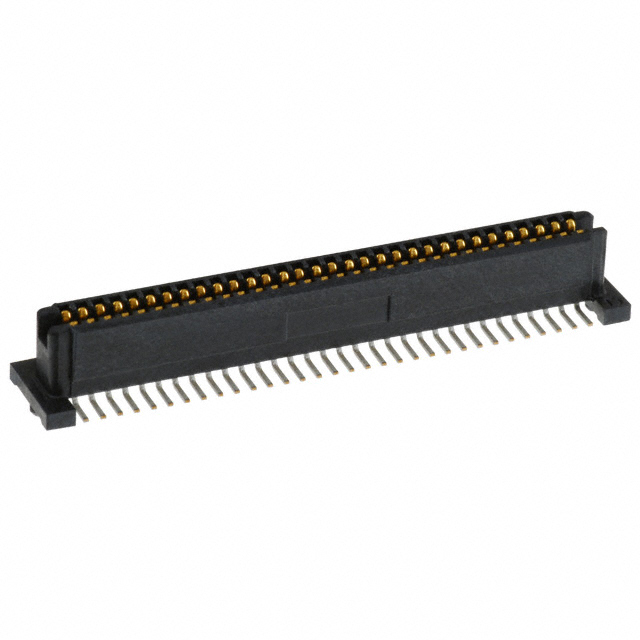

CONN RCPT 64POS SMD GOLD
Deep-Dive with AI
Search across all available documentation for this part.
120521-1
ActiveTE Connectivity AMP Connectors
CONN RCPT 64POS SMD GOLD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 120521-1 | 120521 Series |
|---|---|---|
| Connector Type | Receptacle, Outer Shroud Contacts | Receptacle, Outer Shroud Contacts |
| Contact Finish | Gold | Gold |
| Contact Finish Thickness | 0.76 Ám | 0.76 Ám |
| Contact Finish Thickness | 30 Áin | 30 Áin |
| Features | Board Guide | Board Guide |
| Height Above Board | 0.212 in | 0.212 in |
| Height Above Board | 5.38 mm | 5.38 mm |
| Mated Stacking Heights | 10 mm, 8 mm, 9 mm | 8 - 10 mm |
| Mounting Type | Surface Mount | Surface Mount |
| Number of Positions | 64 | 64 |
| Number of Rows | 2 | 2 |
| Pitch [x] | 0.039 in | 0.039 in |
| Pitch [x] | 1 mm | 1 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 7.02 | |
| 10 | $ 6.12 | |||
| 25 | $ 5.96 | |||
| 50 | $ 5.80 | |||
| 100 | $ 5.44 | |||
| 250 | $ 5.41 | |||
| Digi-Reel® | 1 | $ 7.02 | ||
| 10 | $ 6.12 | |||
| 25 | $ 5.96 | |||
| 50 | $ 5.80 | |||
| 100 | $ 5.44 | |||
| 250 | $ 5.41 | |||
| Tape & Reel (TR) | 650 | $ 5.09 | ||
| 1300 | $ 4.54 | |||
120521 Series
CONN RCPT 64POS SMD GOLD
| Part | Mounting Type | Contact Finish Thickness | Contact Finish Thickness | Number of Positions | Number of Rows | Pitch [x] | Pitch [x] | Connector Type | Mated Stacking Heights | Features | Height Above Board | Height Above Board | Contact Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 1-120521-1 | Surface Mount | 0.76 Ám | 30 Áin | 64 | 2 | 0.039 in | 1 mm | Receptacle, Outer Shroud Contacts | 8 mm, 9 mm, 10 mm | Board Guide | 0.212 in | 5.38 mm | Gold |
TE Connectivity AMP Connectors 120521-1 | Surface Mount | 0.76 Ám | 30 Áin | 64 | 2 | 0.039 in | 1 mm | Receptacle, Outer Shroud Contacts | 8 mm, 9 mm, 10 mm | Board Guide | 0.212 in | 5.38 mm | Gold |
Description
General part information
120521 Series
64 Position Connector Receptacle, Outer Shroud Contacts Surface Mount Gold
