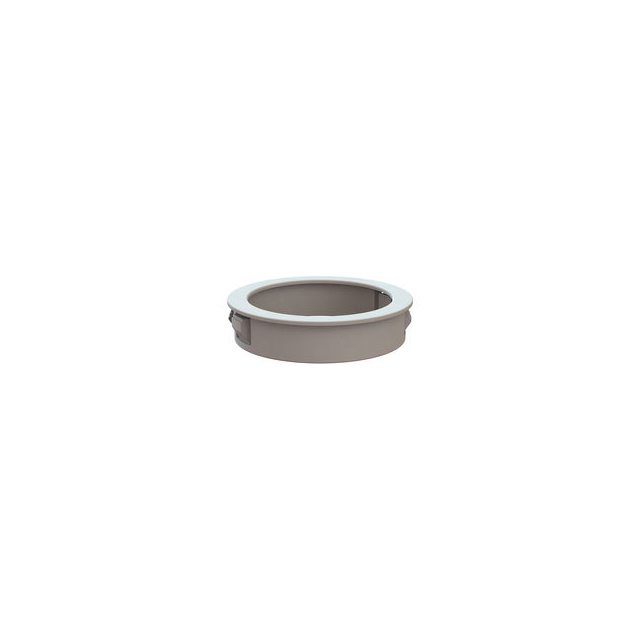

22MP30039W

Active

Essentra Access Solutions

GROMMET, OPEN, 2.47 ", NYLON 6 (POLYAMIDE 6), 3 ", 0.25 "

Search across all available documentation for this part.

Active

Essentra Access Solutions

GROMMET, OPEN, 2.47 ", NYLON 6 (POLYAMIDE 6), 3 ", 0.25 "

Technical Specifications

Parameters and characteristics for this part

Specification	22MP30039W

Bushing, Grommet Type	Bushing
Color	White
Diameter - Inside [diameter]	2.47 in
Diameter - Inside [diameter]	62.74 mm
Features	Snap-Mount
For Use With/Related Products	Wires, Cable
Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-2
Panel Cutout Dimensions [diameter]	3 in
Panel Cutout Dimensions [diameter]	76.2 mm
Panel Thickness	0.25 "
Panel Thickness	6.35 mm

Part	Diameter - Inside [diameter]	Diameter - Inside [diameter]	Features	Color	Material	Panel Cutout Dimensions [diameter]	Panel Cutout Dimensions [diameter]	Panel Thickness	Panel Thickness	Material Flammability Rating	Bushing, Grommet Type	For Use With/Related Products
Essentra Access Solutions 22MP30039W	2.47 in	62.74 mm	Snap-Mount	White	Polyamide (PA66) Nylon 6/6	3 in	76.2 mm	0.25 "	6.35 mm	UL94 V-2	Bushing	Cable Wires

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Circular - 3.000" (76.20mm) Bushing 2.470" (62.74mm) White
