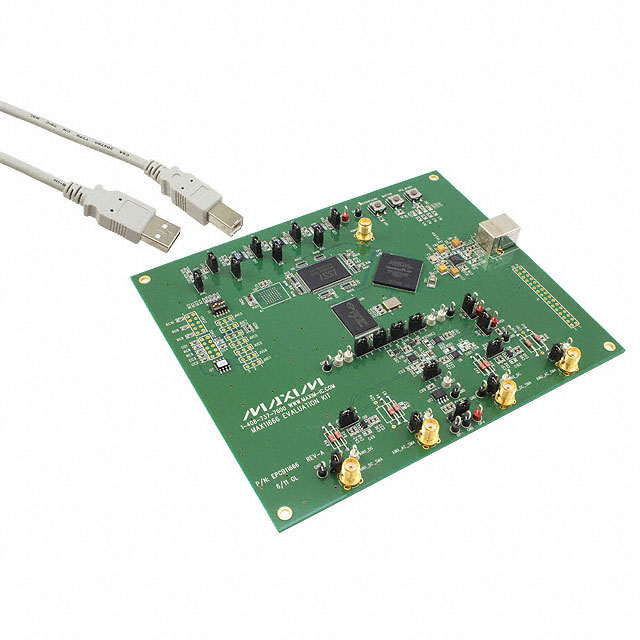

MAX11666EVKIT#

Active

Analog Devices Inc./Maxim Integrated

KIT EVAL FOR MAX11666

Search across all available documentation for this part.

Active

Analog Devices Inc./Maxim Integrated

KIT EVAL FOR MAX11666

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 123.35

General part information

MAX11666 - 12 Bit 500k Samples per Second Analog to Digital Converter (ADC) Evaluation Board

Technical documentation and resources

Parameters and characteristics commom to parts in this series

IC ADC 12BIT SAR 10UMAX

Part	Package / Case	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Supply, Digital [Min]	Voltage - Supply, Digital [Max]	Number of A/D Converters	Data Interface	Sampling Rate (Per Second)	Number of Inputs	Architecture	Number of Bits	Reference Type	Supplier Device Package	Voltage - Supply, Analog [Max]	Voltage - Supply, Analog [Min]	Mounting Type	Ratio - S/H:ADC	Input Type	Configuration	Utilized IC / Part	Supplied Contents
Analog Devices Inc./Maxim Integrated MAX11666AUB/V+T	0.118 in, 3 Lead	10-MSOP, 10-TFSOP, Exposed Pad	125 °C	-40 °C	2.2 V	3.6 V	1	SPI	500k	2	SAR	12 bits	Supply	10-uMAX-EP	3.6 V	2.2 V	Surface Mount	1:1	Single Ended	MUX-S/H-ADC
Analog Devices Inc./Maxim Integrated MAX11666AUB+	0.118 in, 3 Lead	10-MSOP, 10-TFSOP, Exposed Pad	125 °C	-40 °C	2.2 V	3.6 V	1	SPI	500k	2	SAR	12 bits	Supply	10-uMAX-EP	3.6 V	2.2 V	Surface Mount	1:1	Single Ended	MUX-S/H-ADC
Analog Devices Inc./Maxim Integrated MAX11666AUB/V+	0.118 in, 3 Lead	10-MSOP, 10-TFSOP, Exposed Pad	125 °C	-40 °C	2.2 V	3.6 V	1	SPI	500k	2	SAR	12 bits	Supply	10-uMAX-EP	3.6 V	2.2 V	Surface Mount	1:1	Single Ended	MUX-S/H-ADC
Analog Devices Inc./Maxim Integrated MAX11666EVKIT#							1	SPI	500k			12 bits									MAX11666	Board(s)
Analog Devices Inc./Maxim Integrated MAX11666AUB+T	0.118 in, 3 Lead	10-MSOP, 10-TFSOP, Exposed Pad	125 °C	-40 °C	2.2 V	3.6 V	1	SPI	500k	2	SAR	12 bits	Supply	10-uMAX-EP	3.6 V	2.2 V	Surface Mount	1:1	Single Ended	MUX-S/H-ADC
