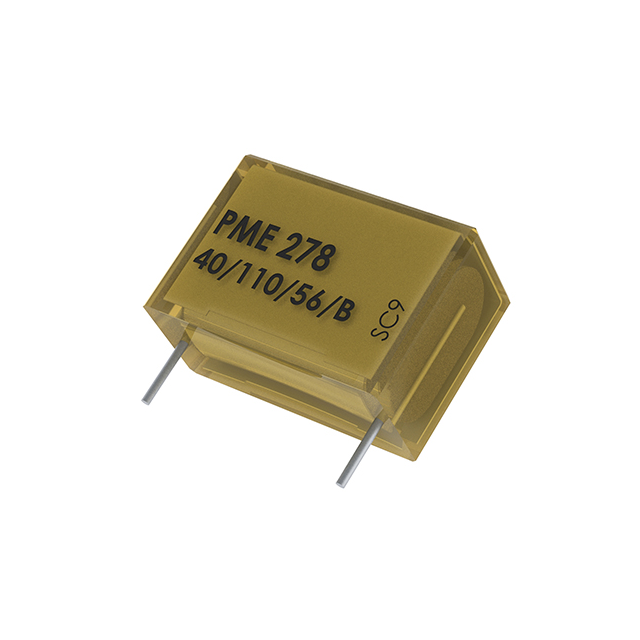

PME278RE6150MR30
ObsoleteKEMET
CAP FILM 0.15UF 20% 1KVDC RADIAL
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsPME278RE6150MR30 Spec
PME278RE6150MR30
ObsoleteKEMET
CAP FILM 0.15UF 20% 1KVDC RADIAL
Deep-Dive with AI
DocumentsPME278RE6150MR30 Spec
Technical Specifications
Parameters and characteristics for this part
| Specification | PME278RE6150MR30 |
|---|---|
| Applications | EMI, RFI Suppression |
| Capacitance | 0.15 ÁF |
| Dielectric Material | Paper, Metallized |
| Height - Seated (Max) [Max] [z] | 22 mm |
| Height - Seated (Max) [Max] [z] | 0.866 in |
| Lead Spacing | 25.4 mm |
| Lead Spacing | 1 in |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 110 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Radial |
| Ratings | X1 |
| Size / Dimension [x] | 1.201 in |
| Size / Dimension [x] | 30.5 mm |
| Size / Dimension [y] | 0.602 in |
| Size / Dimension [y] | 15.3 mm |
| Termination | PC Pins |
| Tolerance | 20 % |
| Voltage Rating - AC | 440 V |
| Voltage Rating - DC | 1 kVDC |
| Voltage Rating - DC | 1 kV |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
PME278 Series
0.15 µF Film Capacitor 440V 1000V (1kV) Paper, Metallized Radial
