NHD-240128BZ-NSW-BTW-3V3

Obsolete

Newhaven Display Intl

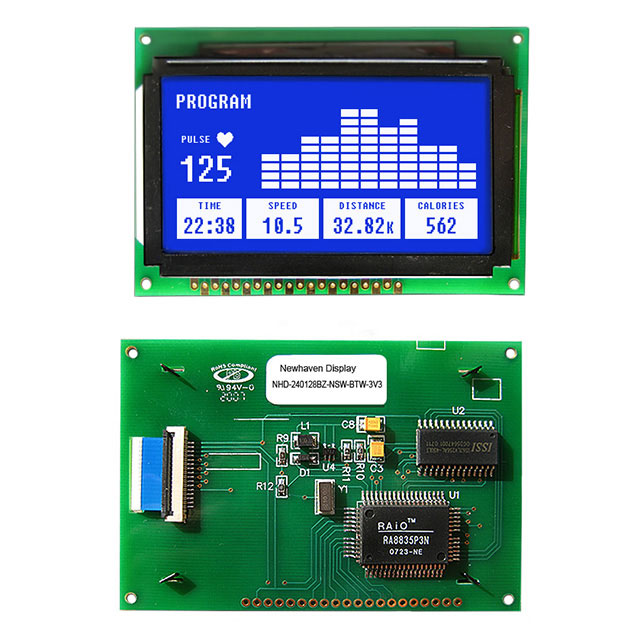

LCD MOD GRAPH 240X128 WH TRANSM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet LCD Safe Handling Procedure +1

NHD-240128BZ-NSW-BTW-3V3

Obsolete

Newhaven Display Intl

LCD MOD GRAPH 240X128 WH TRANSM

Deep-Dive with AI

DocumentsDatasheet LCD Safe Handling Procedure +1

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

NHD-240128 Series

Graphic LCD Display Module Transmissive White STN - Super-Twisted Nematic Parallel, 8-Bit 240 x 128

Documents

Technical documentation and resources

Datasheet

LCD Safe Handling Procedure

LCD Solvent Precautions

Related Document

Specification	NHD-240128BZ-NSW-BTW-3V3	NHD-240128 Series

Background Color	Blue	Blue, White, Gray
Background Color	-	White, Black
Backlight	LED - White	LED - White, CCFL
Controller Type	-	RA6963
Display Mode	Transmissive	Transmissive, Transflective
Display Type	STN - Super-Twisted Nematic	STN - Super-Twisted Nematic, FSTN - Film Super-Twisted Nematic
Dot Pitch [x]	0.27 mm	0.27 - 0.5 mm
Dot Pitch [y]	0.27 mm	0.27 - 0.5 mm
Dot Pixels [x]	240 pixels	240 pixels
Dot Pixels [y]	128	128
Dot Size	-	0.43 mm
Dot Size [x]	0.25 mm	0.25 - 0.47 mm
Dot Size [y]	0.25 mm	0.25 - 0.47 mm
Graphics Color	White	White, Blue, Black, Green
Interface	Parallel, 8-Bit	Parallel, 8-Bit
Viewing Area	-	74 mm
Viewing Area [x]	72 mm	72 - 129 mm
Viewing Area [y]	40 mm	40 - 128 mm

Part	Display Mode	Dot Pixels [x]	Dot Pixels [y]	Background Color	Graphics Color	Viewing Area [x]	Viewing Area [y]	Dot Pitch [x]	Dot Pitch [y]	Dot Size [y]	Dot Size [x]	Backlight	Interface	Display Type	Background Color	Dot Size [z]	Controller Type	Viewing Area [z]
Newhaven Display Intl NHD-240128BZ-NSW-BTW-3V3	Transmissive	240 pixels	128	Blue	White	72 mm	40 mm	0.27 mm	0.27 mm	0.25 mm	0.25 mm	LED - White	Parallel, 8-Bit	STN - Super-Twisted Nematic
Newhaven Display Intl NHD-240128WG-BTMI-VZ#	Transmissive	240 pixels	128	Blue	Blue, White	114 mm	64 mm	0.45 mm	0.45 mm	0.43 mm		LED - White	Parallel, 8-Bit	STN - Super-Twisted Nematic	White	0.43 mm	RA6963
Newhaven Display Intl NHD-240128WG-BFGH-VZ#-C	Transflective	240 pixels	128			114 mm	64 mm	0.45 mm	0.45 mm	0.43 mm		CCFL	Parallel, 8-Bit	STN - Super-Twisted Nematic		0.43 mm	RA6963
Newhaven Display Intl NHD-240128WG-AFTI-VZ#C5	Transmissive	240 pixels	128			129 mm	75 mm	0.5 mm	0.5 mm	0.47 mm	0.47 mm	CCFL	Parallel, 8-Bit	FSTN - Film Super-Twisted Nematic			RA6963
Newhaven Display Intl NHD-240128WG-ATFH-VZ#	Transflective	240 pixels	128	White	Black		128 mm	0.5 mm	0.5 mm	0.47 mm	0.47 mm	LED - White	Parallel, 8-Bit	FSTN - Film Super-Twisted Nematic	Black		RA6963	74 mm
Newhaven Display Intl NHD-240128WG-BTGH-VZ#	Transflective	240 pixels	128	Gray	Blue	114 mm	64 mm	0.45 mm	0.45 mm	0.43 mm		LED - White	Parallel, 8-Bit	STN - Super-Twisted Nematic		0.43 mm	RA6963
Newhaven Display Intl NHD-240128BZ-NSW-BTW	Transmissive	240 pixels	128	Blue	White	72 mm	40 mm	0.27 mm	0.27 mm	0.25 mm	0.25 mm	LED - White	Parallel, 8-Bit	STN - Super-Twisted Nematic
Newhaven Display Intl NHD-240128WG-BTML-VZ#	Transmissive	240 pixels	128	Blue	Blue, White	114 mm	64 mm	0.45 mm	0.45 mm	0.43 mm		LED - White	Parallel, 8-Bit	STN - Super-Twisted Nematic	White	0.43 mm	RA6963
Newhaven Display Intl NHD-240128WG-BYGH-VZ#000C	Transflective	240 pixels	128		Black, Green	114 mm	64 mm	0.45 mm	0.45 mm	0.43 mm			Parallel, 8-Bit	STN - Super-Twisted Nematic		0.43 mm	RA6963
