8112 060100

Active

Belden Inc.

MULTI-PAIR 25COND 24AWG

Search across all available documentation for this part.

Active

Belden Inc.

MULTI-PAIR 25COND 24AWG

Technical Specifications

Parameters and characteristics for this part

Specification	8112 060100

Cable Type	Multi-Pair
Conductor Insulation	Foam Polyethylene (FPE)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	32 AWG
Conductor Strand [custom]	7
Features	Drain Wire
Jacket (Insulation) Diameter	0.44 in
Jacket (Insulation) Diameter	11.18 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.889 mm
Jacket (Insulation) Thickness	0.035 in
Jacket Color	Chrome
Length [x]	30.5 m
Length [x]	100 ft
Number of Conductors	25
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-30 ░C
Ratings	UL Style 2919
Shield Coverage	100 %, 65 %
Shield Material	Copper, Tinned, Aluminum
Shield Type	Foil, Braid
Wire Gauge	24 AWG

Part	Conductor Insulation	Jacket Color	Ratings	Shield Material	Length [x]	Length [x]	Cable Type	Jacket (Insulation) Diameter	Jacket (Insulation) Diameter	Shield Coverage	Wire Gauge	Conductor Strand [custom]	Conductor Strand [custom]	Features	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Shield Type	Number of Conductors	Conductor Material	Operating Temperature [Min]	Operating Temperature [Max]	Jacket (Insulation) Material
Belden Inc. 8112 060100	Foam Polyethylene (FPE)	Chrome	UL Style 2919	Aluminum Copper Tinned	30.5 m	100 ft	Multi-Pair	0.44 in	11.18 mm	65 % 100 %	24 AWG	32 AWG	7	Drain Wire	0.889 mm	0.035 in	Braid Foil	25	Copper Tinned	-30 ░C	80 C	Poly-Vinyl Chloride (PVC)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

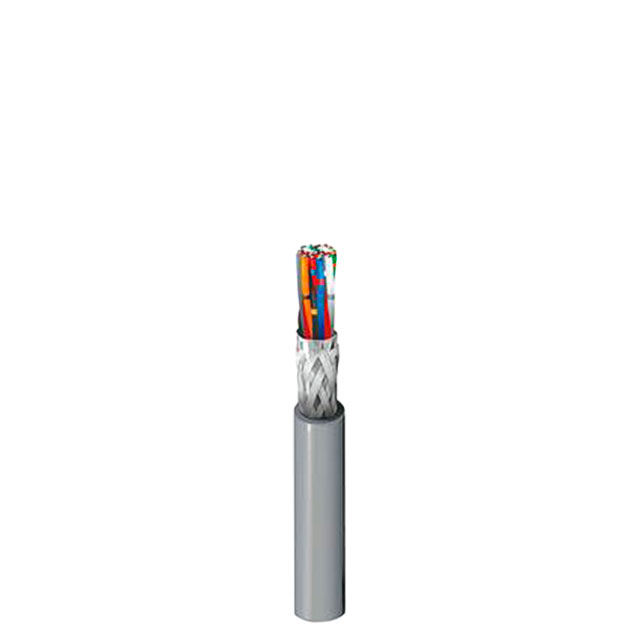

25 (12.5 Pair Twisted) Conductor Multi-Pair Cable Chrome 24 AWG Foil, Braid 100.0' (30.5m)
