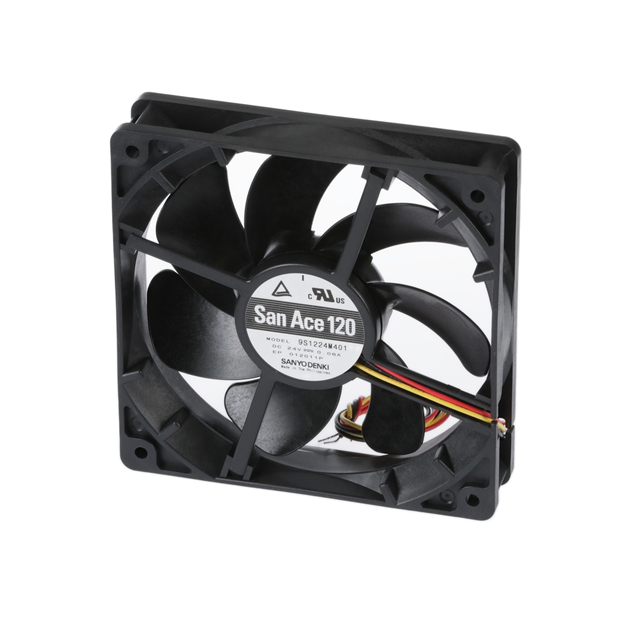

Specification	9S1224M401

Air Flow	58.6 CFM
Approval Agency	CSA, TUV, UL
Bearing Type	Ball
Current Rating	60 mA
Fan Type	Tubeaxial
Features	Locked Rotor Protection, Speed Sensor (Tach)
Lifetime	40000 Hrs
Material - Blade	Plastic
Material - Frame	Plastic
Noise	24 dB
Operating Temperature (Max)	158 °F
Operating Temperature (Min)	14 °F
Power (Watts)	1.44 W
RPM	1850 RPM
Size / Dimension Height	120 mm
Size / Dimension Length	120 mm
Size / Dimension Shape	Square
Static Pressure	0.09 in H2O
Termination	3 Wire Leads
Termination Leads Count	3
Termination Type	Wire Leads
Voltage - Rated	24 VAC
Voltage Range (Max)	26.4 VDC
Voltage Range (Min)	14 VDC
Weight	0.309 lb
Width	25 mm

9S1224 Series

Part	Air Flow	Width	Bearing Type	Noise	Features	Weight	Size / Dimension Height	Size / Dimension Shape	Size / Dimension Length	Operating Temperature (Max)	Operating Temperature (Min)	Power (Watts)	Voltage - Rated	Termination Leads Count	Termination Type	Termination	Fan Type	Static Pressure	Approval Agency	RPM	Material - Frame	Material - Blade	Lifetime	Voltage Range (Min)	Voltage Range (Max)	Current Rating
Sanyo Denki America Inc. 9S1224M4011	58.6 CFM	25 mm	Ball	24 dB	Locked Rotor Protection Speed Sensor (Tach)	0.309 lb	120 mm	Square	120 mm	158 °F	14 °F	1.44 W	24 VAC	3	Wire Leads	3 Wire Leads	Tubeaxial	0.09 in H2O	CSA TUV UL	1850 RPM	Plastic	Plastic	40000 Hrs	14 VDC	26.4 VDC	60 mA
Sanyo Denki America Inc. 9S1224M402	58.6 CFM	25 mm	Ball	24 dB	Locked Rotor Protection	0.309 lb	120 mm	Square	120 mm	158 °F	14 °F	1.44 W	24 VAC	2 leads	Wire Leads	2 Wire Leads	Tubeaxial	0.09 in H2O	CSA TUV UL	1850 RPM	Plastic	Plastic	40000 Hrs	14 VDC	26.4 VDC	60 mA
Sanyo Denki America Inc. 9S1224M401	58.6 CFM	25 mm	Ball	24 dB	Locked Rotor Protection Speed Sensor (Tach)	0.309 lb	120 mm	Square	120 mm	158 °F	14 °F	1.44 W	24 VAC	3	Wire Leads	3 Wire Leads	Tubeaxial	0.09 in H2O	CSA TUV UL	1850 RPM	Plastic	Plastic	40000 Hrs	14 VDC	26.4 VDC	60 mA
